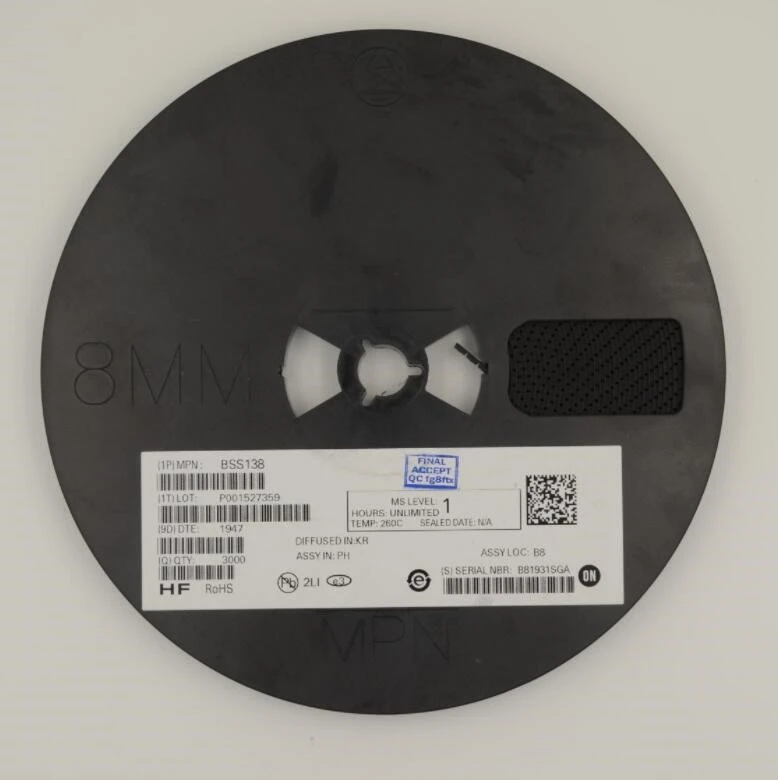

BSS138

High density cell design for extremely low RDS(on) Rugged and Relaible

. As a manufacturer in China, I am proud to introduce our latest product, the BSS138 transistor. This is a versatile component that has a wide range of applications, making it an ideal choice for merchants looking for reliable and quality electronic components. In this product introduction, I will discuss the features and benefits of the BSS138, its performance specifications, and how it can be used in various applications. Features and Benefits The BSS138 is a small signal N-channel field-effect transistor that is specifically designed for low voltage and high-density applications. It has a maximum drain-source voltage of 50V and a continuous drain current of 220mA, making it ideal for a variety of small-signal switching and amplification applications. The BSS138 also features a low threshold voltage of 1.5V, which allows it to be easily triggered by low voltage signals. This makes it ideal for use in battery-powered devices, where low voltage is a critical factor. One of the main benefits of the BSS138 transistor is its low on-resistance, which is typically less than 5 ohms. This means that the transistor can handle high current loads without significant voltage drop, leading to improved efficiency and reduced power dissipation. Additionally, the BSS138 has a fast switching speed, which allows it to be used in high-frequency applications such as audio amplifiers, power supplies, and LED lighting. Performance Specifications The BSS138 transistor has a number of performance specifications that make it an excellent choice for a wide range of applications. These include a maximum power dissipation of 625mW, a maximum junction temperature of 150°C, and a minimum breakdown voltage of 50V. The BSS138 also has a low input capacitance of 4.0pF, which makes it ideal for high-frequency applications where fast switching times are critical. Applications The BSS138 transistor can be used in a variety of applications, including audio amplifiers, power supplies, LED lighting, and motor control. In audio amplifiers, the BSS138 can be used as a switch to control the volume or sound effects. In power supplies, the BSS138 can be used to regulate the voltage and current, ensuring that the power supply operates at the desired level. In LED lighting, the BSS138 can be used to drive the LED circuit, which requires high-frequency switching. In motor control, the BSS138 can be used to control the speed of the motor by changing the voltage applied to the circuit. Conclusion In conclusion, the BSS138 transistor is a versatile and reliable component that has a wide range of applications. Its low voltage threshold, low on-resistance, and fast switching speed make it an excellent choice for small signal switching and amplification applications. Its low input capacitance also makes it ideal for high-frequency applications. As a manufacturer located in China, we are committed to providing high-quality electronic components to merchants in countries outside of China. The BSS138 transistor is one of our latest products, and we are confident that it will meet your needs for quality and reliability. FEATURE ● High density cell design for extremely low RDS(on) ● Rugged and Relaible APPLICATION ● Direct Logic-Level Interface: TTL/CMOS ● Drivers: Relays, Solenoids, Lamps, Hammers,Display, Memories, Transistors, etc. ● Battery Operated Systems ● Solid-State Relays Why choose us? Our FET products are backed by rigorous testing and quality control measures. Our staffs are adhering to the 'Integrity-based and Interactive Development' spirit, and the tenet of 'First-class Quality with Excellent Service'. We have a strong distribution network to ensure timely delivery of our products. The company adheres to the business philosophy of "providing convenient services for customers and creating development opportunities for employees" and the enterprise spirit of "making unremitting progress and enjoying success", and warmly welcomes new and old friends to come to negotiate trade and create great business together. Our factory has a large production capacity, ensuring fast order fulfillment. The company will adhere to the guidance of the socialist ideology with Chinese characteristics in the new era and strive to build the company. Our company is committed to ongoing research and development of FET products. We take responsibility serious, focus on the product itself, and always adhere to one brand and one standard to serve the market. Our factory is equipped with the latest technology to produce high-quality FET products. Our company's BSS138 has a variety of quality inspection reports, which have won wide acclaim. Our products not only emphasize practicability and safety but also reflect customer needs. In the future, we will deeply cultivate this field in order to continue to maintain an advantage in the future market. Hot Tags: bss138, China bss138 suppliers, manufacturers, BSS138 Marking SS SOT23 Field Effect Transistor, opto transistor, semiconductor transistor, AO3415 Marking AFRL SOT23 Field Effect Transistor, Triode Transistor, high voltage transistor
