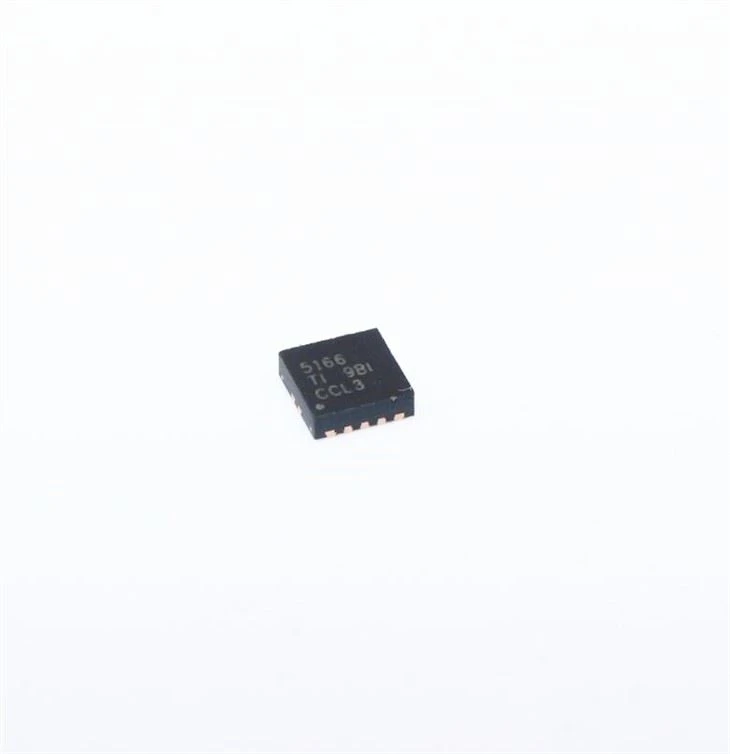

Power Management Integrated Circuits LM5166DRCR

.

The LM5166DRCR is a high-performance power management solution designed for a wide range of applications. With its advanced features and superior performance, this product is ideal for a variety of industries, including automotive, industrial, medical, and consumer electronics.

One of the key features of the LM5166DRCR is its high-efficiency power conversion capabilities. With a wide input voltage range of 3V to 65V, it is suitable for use in a variety of voltage regulation applications. Its adjustable output voltage range also makes it a versatile solution for a wide range of applications.

The LM5166DRCR also features advanced power management technologies that ensure maximum efficiency and reliability. Its integrated current sensing and feedback circuitry enable precise current control, while its thermal protection and fault detection features ensure safe and reliable operation.

In addition to these core features, the LM5166DRCR also offers a range of advanced features designed to meet the needs of modern applications. These include:

- High-frequency operation: With a switching frequency of up to 2.4 MHz, the LM5166DRCR enables high-speed power conversion while minimizing size and cost.

- Soft-start and current limit features: These features ensure smooth and stable startup, while protecting the device from overcurrent conditions.

- Compact and robust package: The LM5166DRCR is available in a compact 6-pin WSON package, making it ideal for space-constrained applications. Its robust design also ensures reliable operation in harsh environments.

- Wide temperature range: With an operating temperature range of -40°C to 125°C, the LM5166DRCR is suitable for use in a variety of industrial and automotive applications.

Overall, the LM5166DRCR is a high-performance power management solution that offers superior efficiency, reliability, and functionality. Whether you are looking for a versatile solution for a range of applications or a robust solution for harsh environments, the LM5166DRCR is the perfect choice. With its advanced features and superior performance, it is sure to meet the needs of even the most demanding applications.

Description

The LM5166 is a compact, easy-to-use, 3-V to 65-V, ultra-low IQ synchronous buck converter with high efficiency over wide input voltage and load current ranges. With integrated high-side and low-side power MOSFETs, up to 500 mA of output current can be delivered at fixed output voltages of 3.3 V or 5 V, or an adjustable output. The converter is designed to simplify implementation while providing options to optimize the performance for the target application. Pulse frequency modulation (PFM) mode is selected for optimal light-load efficiency or constant on-time (COT) control for nearly constant operating frequency. Both control schemes do not require loop compensation while providing excellent line and load transient response and short PWM on-time for large step-down conversion ratios.

The high-side P-channel MOSFET can operate at 100% duty cycle for lowest dropout voltage and does not require a bootstrap capacitor for gate drive. Also, the current limit setpoint is adjustable to optimize inductor selection for a particular load current requirement. Selectable and adjustable start-up timing options include minimum delay (no soft start), internally fixed (900 μs), and externally programmable soft start using a capacitor. An open-drain PGOOD indicator can be used for sequencing, fault reporting, and output voltage monitoring. The LM5166 is available in a 10-pin VSON package with 0.5-mm pin pitch.

Features

• Wide Input Voltage Range of 3 V to 65 V

• 9.7-µA No-Load Quiescent Current

• –40°C to 150°C Junction Temperature Range

• Fixed (3.3-V, 5-V) or Adjustable VOUT Options

• Meets EN55022 / CISPR 22 EMI Standards

• Integrated 1-Ω PFET Buck Switch – Supports 100% Duty Cycle for Low Dropout

• Integrated 0.5-Ω NFET Synchronous Rectifier – Eliminates External Schottky Diode

• Programmable Peak Current Limit Supports: – 500-mA, 300-mA, or 200-mA Loads

• Selectable PFM or COT Mode Operation

• 1.223-V ±1.2% Internal Voltage Reference

• Switching Frequency up to 600 kHz

• 900-µs Internal or Externally-Adjustable Soft Start

• Diode Emulation and Pulse Skipping for UltraHigh Light-Load Efficiency

• No Loop Compensation or Bootstrap Components

• Precision Enable and Input UVLO With Hysteresis

• Open-Drain Power Good Indicator

• Thermal Shutdown Protection With Hysteresis

• Pin-to-Pin Compatible With the LM5165

• 10-Pin, 3-mm × 3-mm VSON Package

• Create a Custom Regulator Design Using WEBENCH® Power Designer

Applications

• Factory and Building Automation

• Automotive and Battery-Powered Applications

• High Voltage LDO Replacement

• Low Power Bias Supplies

Why choose us?

• We offer competitive pricing for our DC DC Power Chip products and other services.
• Our corporate culture is: create value for customers and develop together with our partners! Strong enterprises and happy employees are what we have been trying to create! We keep learning, keep process, and strive to become the industry leader as soon as possible!
• Our production facility is equipped with advanced equipment and technology to guarantee the quality of our products.
• Our company takes the quality as the foundation, the service first principle, produces the high quality LM5166DRCR for the user.
• We have a vision to be a leading supplier of high-quality DC DC Power Chip products and related services.
• We hope to cooperate with more friends from all over the world.
• Our factory can handle large-volume orders and offer flexible production schedules to meet customer demands.
• We must practice compliance and law-abiding awareness, fulfill our responsibility of due diligence, and become a first-class enterprise soon!
• We have a reputation for delivering high-quality DC DC Power Chip products on time and within budget.
• Our company has a group of research and development team with strong technical force, they are conscientious, conscientious and responsible, and strictly control in accordance with the standard in every link.
