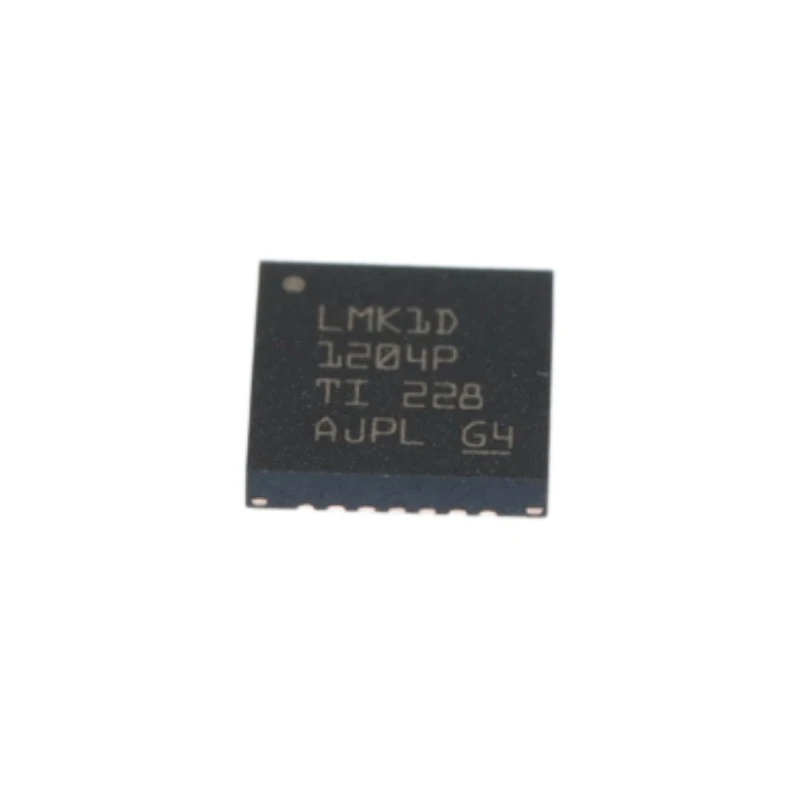

LMK1D1204P

LMK1D1204P The clock buffer is able to assign delays with a very small clock, assigning one of the two optional clock inputs (IN 0 and IN 1) to 4 pairs of differential LVDS clock outputs (OUT 0 to OUT 3). The input can be either LVDS, LVPECL, LVCMOS, HCSL, or CML. LMK1D1204P Designed to drive 50 Ω transmission lines.

LMK1D1204P The clock buffer is able to assign delays with a very small clock, assigning one of the two optional clock inputs (IN 0 and IN 1) to 4 pairs of differential LVDS clock outputs (OUT 0 to OUT 3). The input can be either LVDS, LVPECL, LVCMOS, HCSL, or CML. LMK1D1204P Designed to drive 50 Ω transmission lines. Features The LMK1D1204P is a clock buffer that is designed to provide high-performance clock signals for use in demanding applications. One of the key features of this device is its failure protection input, which ensures that the clock signal remains stable even if there is a problem with the input signal. Another important feature is the ability to enable or disable the independent output via a hardware pin. This gives users greater control over the output signal and helps to minimize the risk of interference from other devices. With a maximum output frequency of up to 2GHz, the LMK1D1204P is capable of delivering high-quality clock signals at very high speeds. This makes it a popular choice for use in a wide range of applications, including telecommunications, data center networking, and high-speed computing Overall, the LMK1D1204P is an excellent choice for anyone who needs a reliable, high-performance clock buffer for their next project. With its advanced features and impressive performance, this device is sure to meet the needs of even the most demanding applications. Parameters Packaging method Input voltage Operational temperature VQFN-28 1.8V -3.3V -40℃~+105℃ Application Telecommunications and the network for medical imaging Postive Photo Dimension Hot Tags: lmk1d1204p, China lmk1d1204p suppliers, manufacturers
