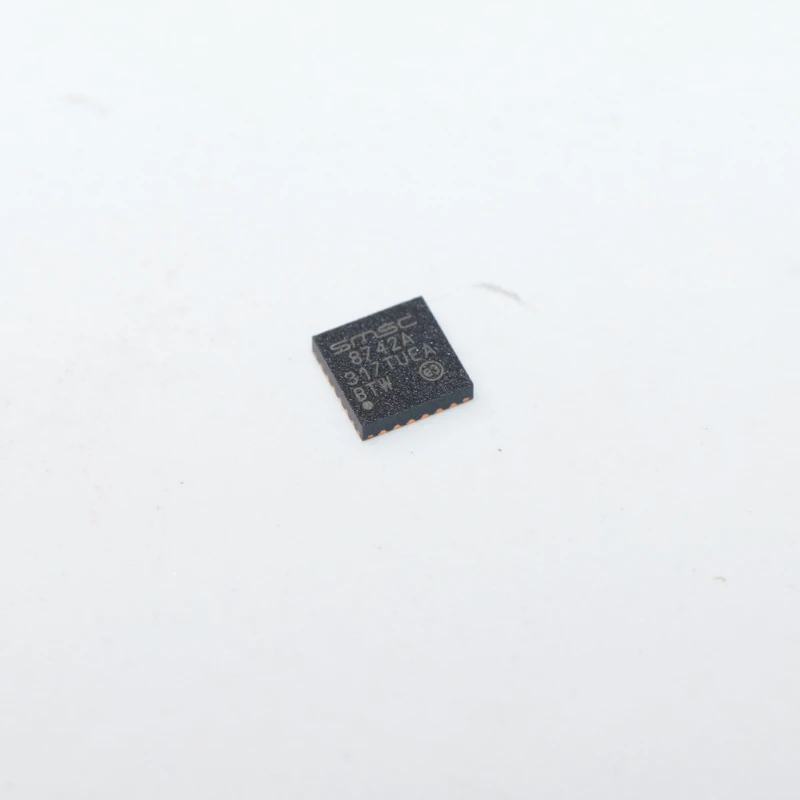

LAN8742A

The LAN8742A/LAN8742Ai is a low-power 10BASE-T/100BASE-TX physical layer （PHY）transceiver with variable I/O voltage that is compliant with the IEEE 802.3 and 802.3u standards.The LAN8742A/LAN8742Ai supports communication with an Ethernet MAC via a standard RMIl interface.

The LAN8742A/LAN8742Ai is a low-power 10BASE-T/100BASE-TX physical layer （PHY）transceiver with variable I/O voltage that is compliant with the IEEE 802.3 and 802.3u standards.The LAN8742A/LAN8742Ai supports communication with an Ethernet MAC via a standard RMIl interface. Features The LAN8742A is a high-performance 10/100 Ethernet transceiver that provides a reliable and efficient solution for Ethernet communication. It is a single-chip Ethernet physical layer transceiver designed to meet the needs of different applications. One of the key features of the LAN8742A is its cable diagnostic support. This feature allows for the detection and diagnosis of cable faults, which can help to improve network performance and prevent downtime. With the LAN8742A, users can easily detect cable problems through a simple diagnostic program. Another important feature of the LAN8742A is Wake on LAN (WoL) support. This feature enables the device to be powered up remotely, which can be particularly useful for remote management and maintenance. With WoL support, system administrators can easily access network devices without the need for physical access. In addition to these features, the LAN8742A also has a number of performance-enhancing capabilities. These include advanced power management features, which help to reduce power consumption and extend the life of the device. The LAN8742A is also designed for reliable operation in harsh environments, making it an ideal solution for industrial applications. Overall, the LAN8742A is a versatile and reliable Ethernet transceiver that offers a range of features and capabilities to support different types of systems and applications. Its comprehensive cable diagnostic support and Wake on LAN functionality make it a particularly attractive option for network administrators and engineers. With its advanced capabilities and reliable performance, the LAN8742A is a valuable addition to any Ethernet network. Parameters Packaging method Input voltage Operational temperature QFN-24 1.8V - 3.3V 0℃ to 85℃ Application Set-Top Boxes、Networked Printers and Servers、Test Instrumentation、LAN on Motherboard Postive Photo Pin Configuration Hot Tags: lan8742a, China lan8742a suppliers, manufacturers
