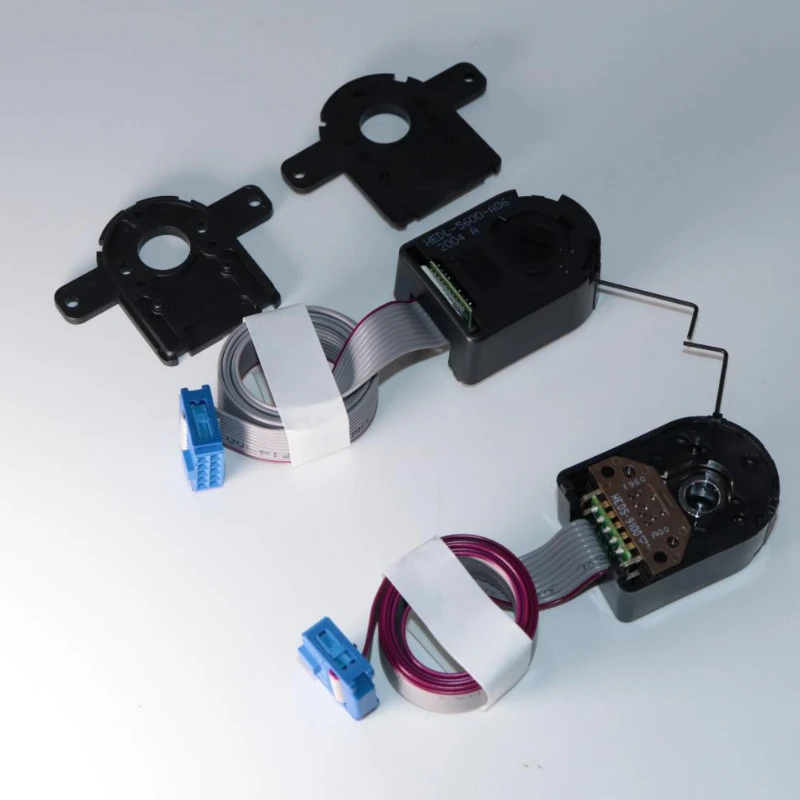

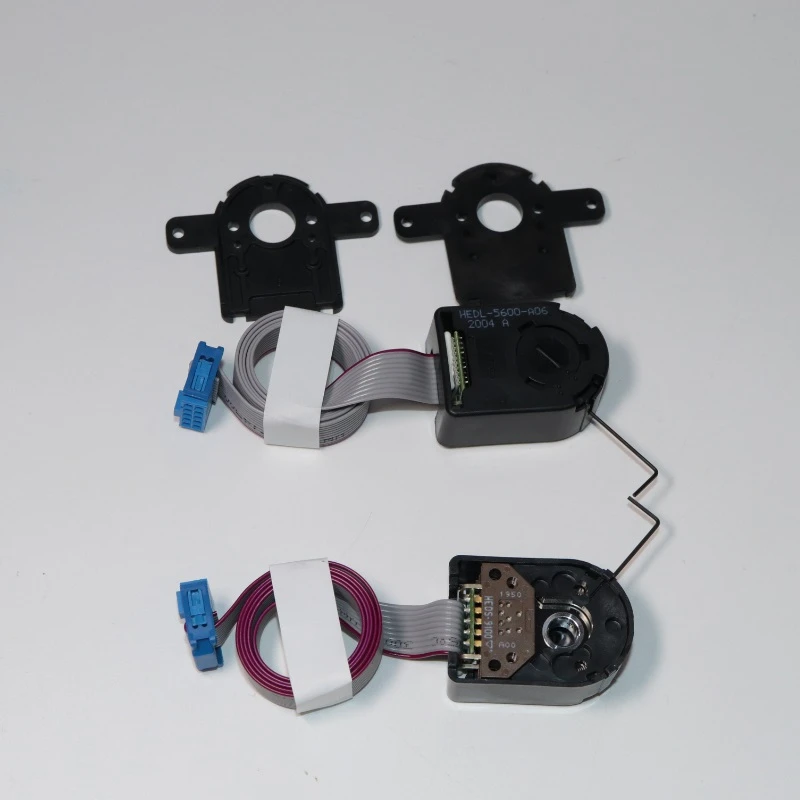

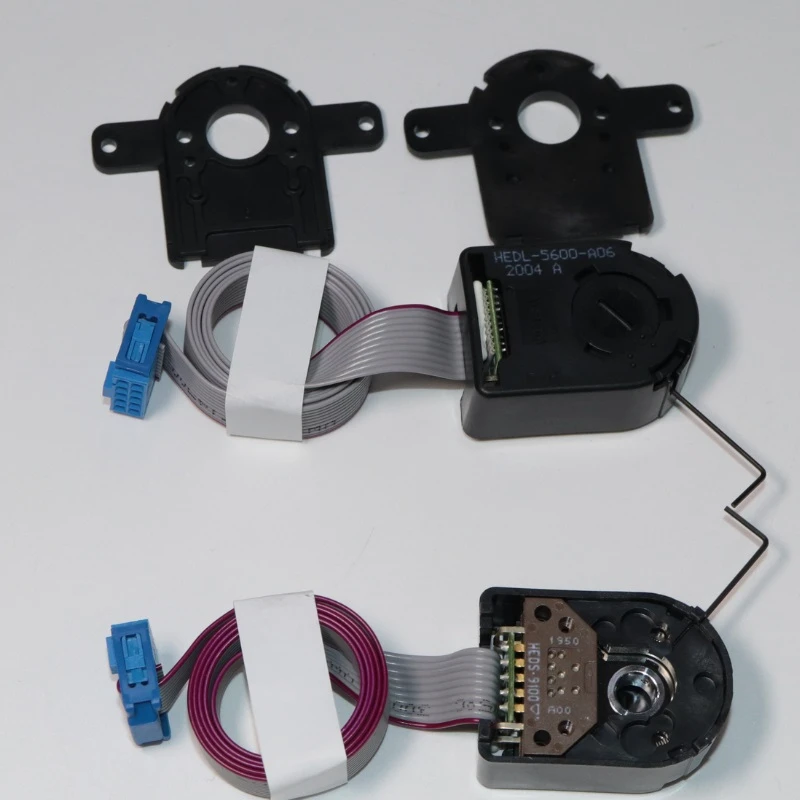

HEDL-5600-A06

Part number: HEDL-5600-A06
Category: Other Electronic Components

Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.

Request this part ↗

Send a complete BOM →

Documents & technical information

A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.

Ask about documentation →

Product information

Overview

Details

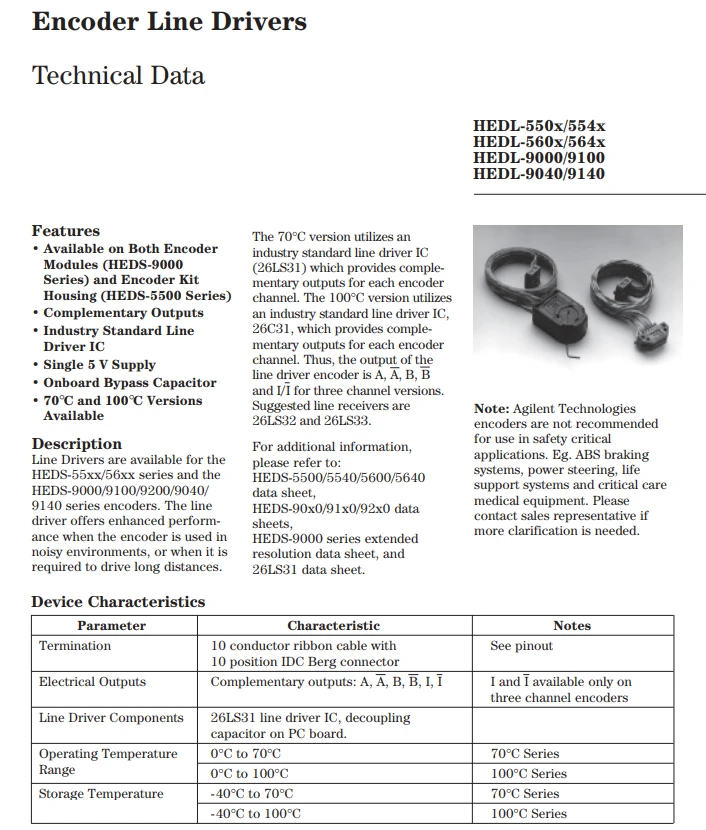

Line Drivers are available for the HEDS-55xx/56xx series and the HEDS-9000/9100/9200/9040/ 9140 series encoders. The line driver offers enhanced performance when the encoder is used in noisy environments, or when it is required to drive long distances. The 70°C version utilizes an industry standard line driver IC (26LS31) which provides complementary outputs for each encoder channel. The 100°C version utilizes an industry standard line driver IC, 26C31, which provides complementary outputs for each encoder channel. Thus, the output of the line driver encoder is A, A, B, B and I/I for three channel versions. Suggested line receivers are 26LS32 and 26LS33. For additional information, please refer to: HEDS-5500/5540/5600/5640 data sheet, HEDS-90x0/91x0/92x0 data sheets, HEDS-9000 series extended resolution data sheet, and 26LS31 data sheet. Hot Tags: hedl-5600-a06, China hedl-5600-a06 suppliers, manufacturers, military rugged computer, DC DC Power Chip, SS12 Marking SS12 SMA Schottky diodes, 405nm laser diode, water meter magnetic sensor, modern semiconductor devices for integrated circuits
