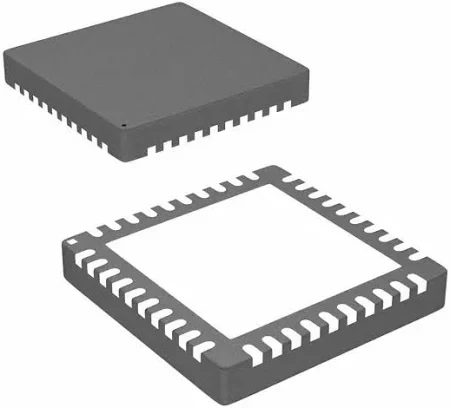

FT245RQ-REEL

The FT245RQ-REEL is a USB-to-parallel FIFO interface IC that simplifies USB connectivity for microcontrollers, FPGAs, and other digital systems.

Key Features Interface Type: USB 2.0 Full-Speed (12 Mb/s) to Parallel FIFO Data Bus Width: 8-bit parallel data + control handshake signals Data Throughput: Up to 1 MByte/s typical (Full-Speed USB) FIFO Mode: Asynchronous or synchronous FIFO operation Voltage Supply: 4.35 V – 5.25 V (VCC) I/O Voltage: 1.8 V to 3.3 V (with built-in level shifting) Integrated Components: USB transceiver and termination resistors On-chip 3.3 V regulator Internal oscillator (no external crystal required) EEPROM for device configuration Clock Output: Optional 6 MHz, 12 MHz, or 48 MHz clock Flow Control: TXE# (Transmit Enable) and RXF# (Receive FIFO Full) signals Operating Temperature: –40 °C to +85 °C (industrial range) Package: 32-pin QFN (5 mm × 5 mm, FT245RQ-REEL denotes reel packaging) RoHS / REACH: Compliant and Pb-free Performance and Functional Highlights Simple parallel FIFO interface - no USB firmware required Full USB 1.1/2.0 Full-Speed compatibility with Windows, macOS, Linux drivers Fully integrated USB protocol engine Supports bit-bang mode for direct GPIO control via USB Configurable USB descriptors through internal EEPROM Supports self-powered or bus-powered configurations Optional USB suspend and wake-up features Applications USB interface for microcontrollers and FPGAs Industrial and test instrumentation Data acquisition systems USB-based peripheral control Embedded systems and communication modules Hot Tags: ft245rq-reel, China ft245rq-reel suppliers, manufacturers
