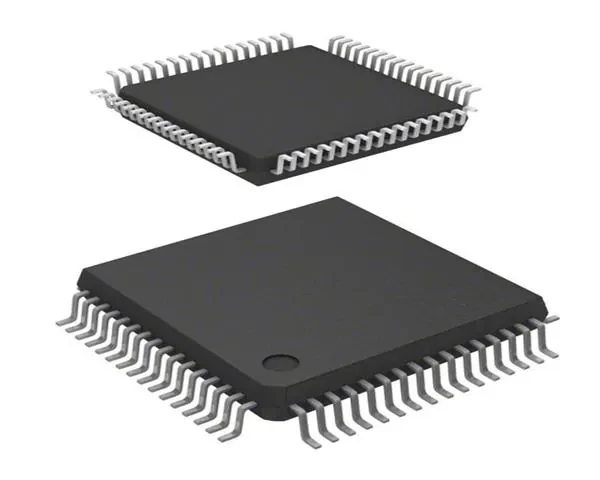

5M80ZE64A5N

The 5M80ZE64A5N is a Complex Programmable Logic Device (CPLD) from Intel’s MAX V family (formerly Altera).

Key Features Device Family: MAX V Device Type: CPLD (Complex Programmable Logic Device) Logic Elements (LEs): 80 Macrocells: 80 User I/O Pins: 54 Embedded Memory: 2 Kbits (User Flash Memory) Configuration Type: Non-volatile (Flash-based, instant-on) Operating Voltage: 1.8 V core, 1.7 V–3.6 V I/O compatible Power Consumption: Ultra-low static power (typical < 50 µA in standby) Package: 64-pin EQFP (E64) – 10 mm × 10 mm Speed Grade: –5 (typical system frequency up to 150 MHz) Operating Temperature: 0 °C to +85 °C (Commercial grade) JTAG Programming: IEEE 1149.1 compliant Security: Programmable protection for design security Endurance: > 1000 program/erase cycles Performance Highlights Instant-on capability: Device powers up and configures in < 1 ms On-chip flash memory: Retains configuration even when power is removed Low static and dynamic power: Ideal for battery-operated or always-on systems Flexible I/O standards: Supports LVCMOS, LVTTL, and open-drain I/O Integrated User Flash Memory (UFM): For small data storage or ID codes Applications Power sequencing and reset control Interface bridging and logic replacement Configuration management for FPGAs or MCUs Industrial control and instrumentation Portable and embedded systems Hot Tags: 5m80ze64a5n, China 5m80ze64a5n suppliers, manufacturers
