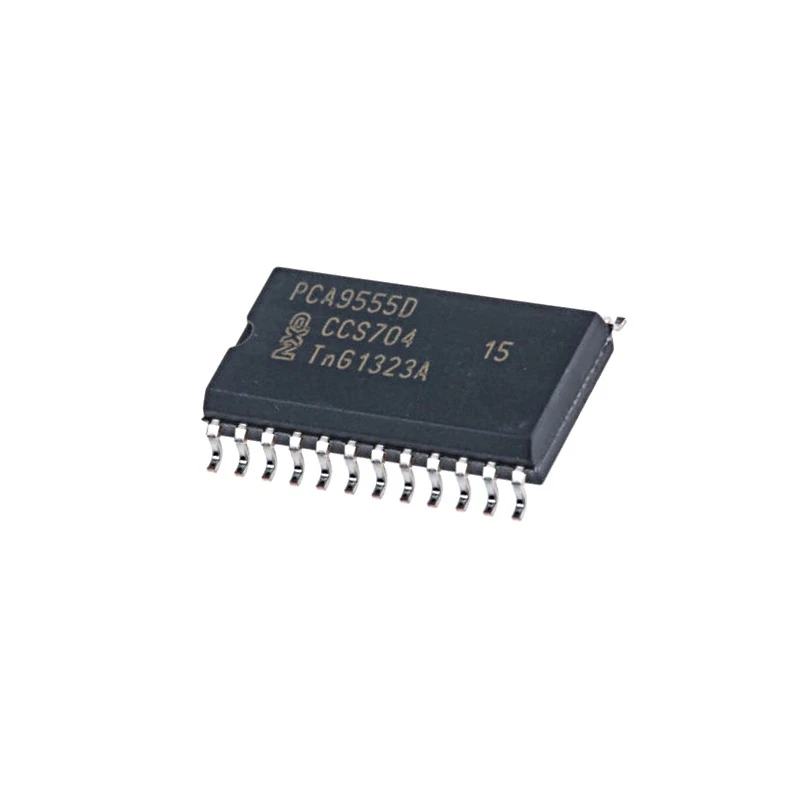

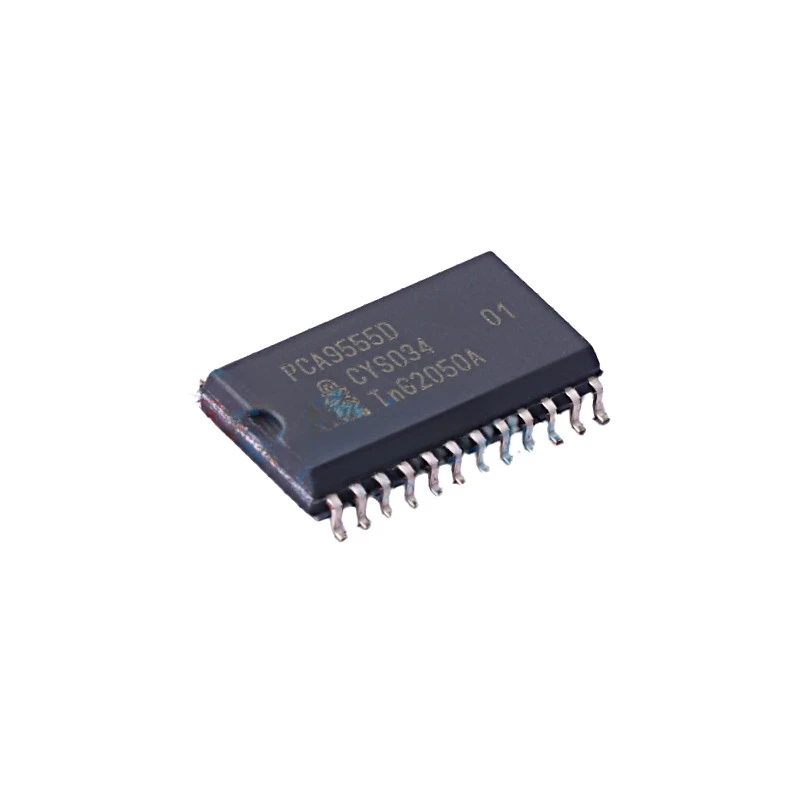

I/O Expanders Chip PCA9555D

The PCA9555 is a 24-pin CMOS device with a universal GPIO interface, which serves as a serial input/output I/O expander chip and provides 16 bits of general purpose parallel input/output (GPIO) expansion.

Products Description The PCA9555 is a 24-pin CMOS device with a universal GPIO interface, which serves as a serial input/output I/O expander chip and provides 16 bits of general purpose parallel input/output (GPIO) expansion. Features The PCA9555D is a reliable and versatile interface chip for Serial Input Output I/O expansion. It has the added benefit of being 5V tolerant, making it compatible with a wide range of applications. Additionally, the chip features a Polarity Inversion register, an Active LOW interrupt output, and Low standby current, all of which contribute to its efficiency and effectiveness as an input/output expander. Furthermore, the PCA9555D is designed with a noise filter on SCL/SDA inputs to prevent disruptions in communication, and there is no glitch on power-up, ensuring a smooth and uninterrupted start-up process. Additionally, the chip has an internal power-on reset, which further enhances its reliability and stability. In terms of safety, the PCA9555D features ESD protection that exceeds 2000 V HBM per JESD22-A114 and 200 V MM per, ensuring that it can withstand a high level of electrostatic discharge without any damage. Overall, the PCA9555D is a highly capable and dependable chip that can be used in a wide range of applications to expand input/output capabilities while maintaining superior performance and safety. Dual-range VCCAUX supply simplifies 3.3V-only design Abundant, flexible logic resources Hierarchical SelectRAM™ memory architecture Parameters Packaging method Input voltage Operational temperature SOT-137 3.00 V to 5V -40 ℃ to 85 ℃ Application IO extensions or sensor interfaces or communication interfaces or IOT applications etc Pin Configuration Hot Tags: i/o expanders chip pca9555d, China i/o expanders chip pca9555d suppliers, manufacturers, Triode Transistor, ge and si diodes, high temperature proximity sensor, industrial automation computer, hmi pc, mixed integrated circuits
