Overview

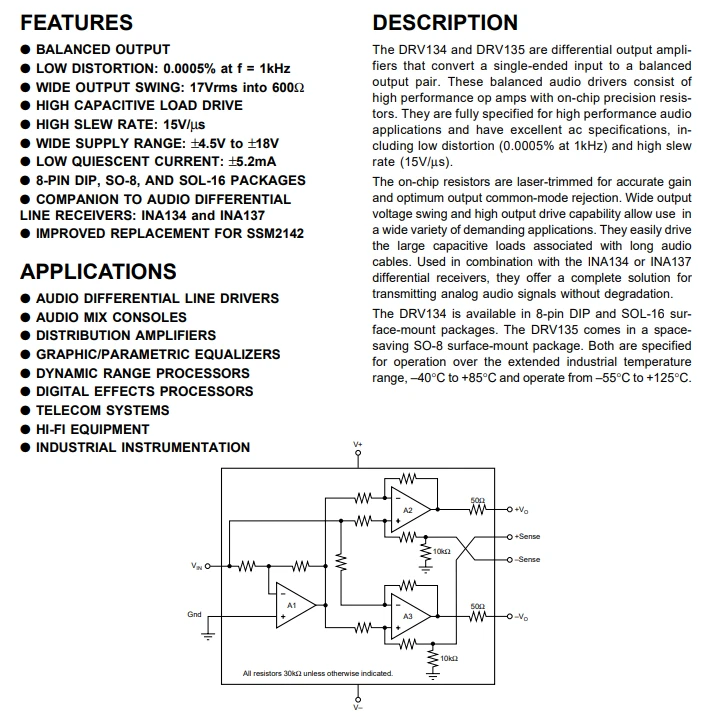

The DRV134 and DRV135 are differential output amplifiers that convert a single-ended input to a balanced output pair.
Details
FEATURES
● BALANCED OUTPUT
● LOW DISTORTION: 0.0005% at f = 1kHz
● WIDE OUTPUT SWING: 17Vrms into 600Ω
● HIGH CAPACITIVE LOAD DRIVE
● HIGH SLEW RATE: 15V/µs
● WIDE SUPPLY RANGE: ±4.5V to ±18V
● LOW QUIESCENT CURRENT: ±5.2mA
● 8-PIN DIP, SO-8, AND SOL-16 PACKAGES
● COMPANION TO AUDIO DIFFERENTIAL
LINE RECEIVERS: INA134 and INA137
● IMPROVED REPLACEMENT FOR SSM2142
APPLICATIONS
● AUDIO DIFFERENTIAL LINE DRIVERS
● AUDIO MIX CONSOLES
● DISTRIBUTION AMPLIFIERS
● GRAPHIC/PARAMETRIC EQUALIZERS
● DYNAMIC RANGE PROCESSORS
● DIGITAL EFFECTS PROCESSORS
● TELECOM SYSTEMS
● HI-FI EQUIPMENT
● INDUSTRIAL INSTRUMENTATION
