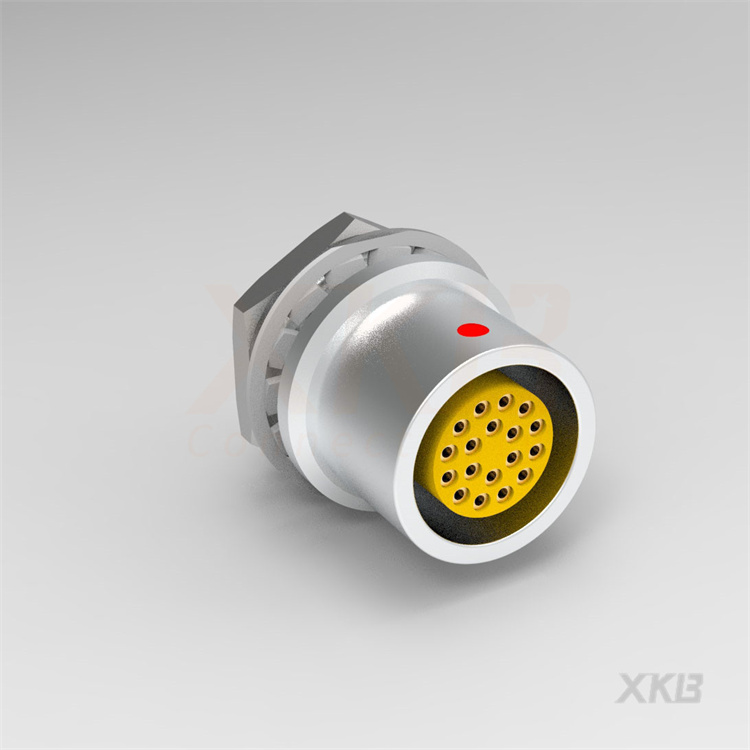

ZHG.3B.P18.CPN Circular Connector 18Pin
- Part number
- ZHG.3B.P18.CPN
- Category
- 标准环形B系列
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The ZHG.3B.P18.CPN is a 18-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
ZHG.3B.P18.CPN Push Pull Circular Connector for Industrial Test Platforms
ZHG.3B.P18.CPN is designed for industrial testing environments requiring dependable electrical connectivity and robust mechanical performance.
Connector Details
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Board Mount Type ,30-22AWG(0-0),螺 Female Fixed 和凸出壳,18P,PEEK
Features
- Reliable locking structure
- Stable electrical transmission
- Compact connector dimensions
- Durable housing materials
- Easy integration into equipment
Technical Specifications
- Pin Count: 18
- Protection Rating: IP50
- Housing Material: Brass
- Insulator Material: PEEK
- Termination Type: PCB Mount
- Wire Gauge: 30-22AWG(0-0)
Applications
Widely used in industrial testing systems, automated inspection equipment, and production verification platforms.
