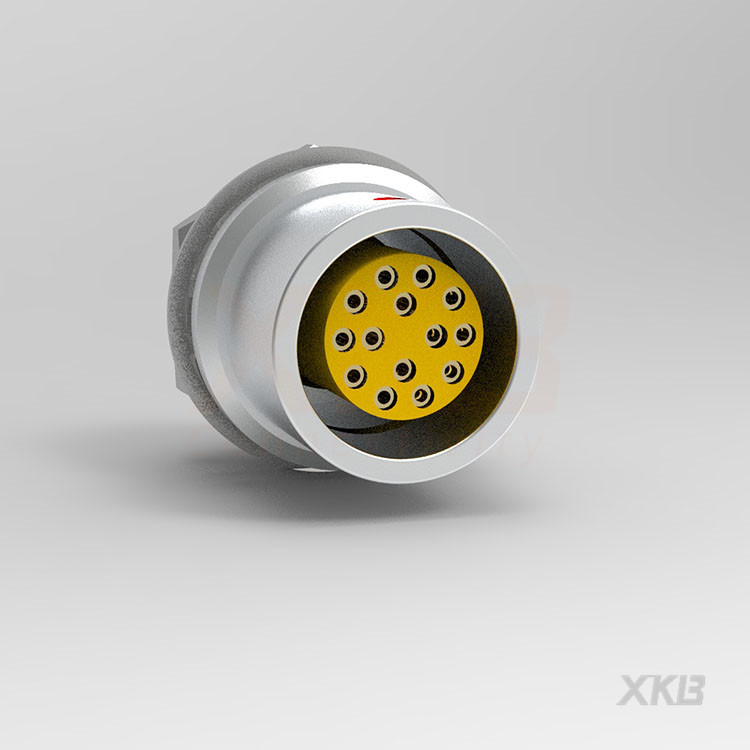

ZHG.3B.P14.CPL Circular Connector 14Pin
- Part number
- ZHG.3B.P14.CPL
- Category
- 标准环形B系列
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The ZHG.3B.P14.CPL is a 14-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
ZHG.3B.P14.CPL Circular Connector for Medical Testing Systems
ZHG.3B.P14.CPL delivers reliable connectivity for medical testing equipment where signal integrity and durability are important.
Product Description
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(4.3-11.9),螺 Female Fixed 和凸出壳,14P,PEEK
Advantages
- Reliable electrical performance
- Stable signal transmission
- Compact connector footprint
- Easy installation
- Long-term reliability
Technical Specifications
- Pin Count: 14
- Protection Rating: IP50
- Housing Material: Brass
- Insulator Material: PEEK
- Termination Type: Solder
- Wire Gauge: 30-22AWG(4.3-11.9)
Applications
Used in testing systems, medical analyzers, healthcare monitoring equipment, and laboratory devices.
