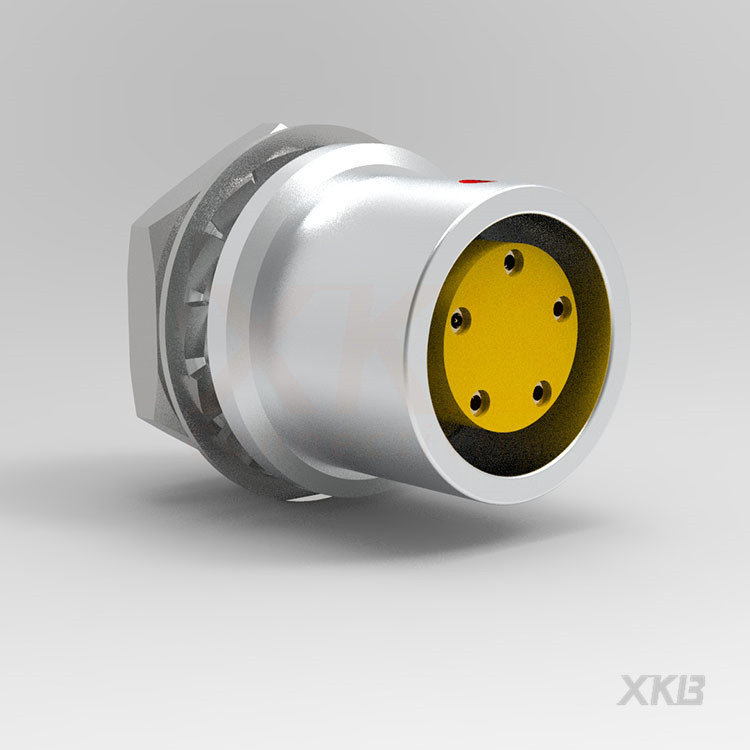

ZHG.3B.P05.CPL Circular Connector 5Pin
- Part number
- ZHG.3B.P05.CPL
- Category
- 标准环形B系列
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The ZHG.3B.P05.CPL is a 5-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
ZHG.3B.P05.CPL Circular Connector for Electronic Integration Projects
ZHG.3B.P05.CPL delivers dependable connectivity for electronic integration projects where reliable signal and power connections are essential.
Product Overview
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,24-16AWG(4.3-11.9),螺 Female Fixed 和凸出壳,5P,PEEK
Features
- Reliable electrical transmission
- Compact connector profile
- Secure push pull locking system
- Durable mechanical construction
- Stable long-term operation
Technical Specifications
- Pin Count: 5
- Protection Rating: IP50
- Housing Material: Brass
- Insulator Material: PEEK
- Termination Type: Solder
- Wire Gauge: 24-16AWG(4.3-11.9)
Applications
Ideal for electronic integration projects, communication systems, industrial electronics, and custom equipment development.
Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Prepare your inquiry
Include the full part number, quantity, required date and any packaging or documentation requirements. For several line items, attach your BOM.
