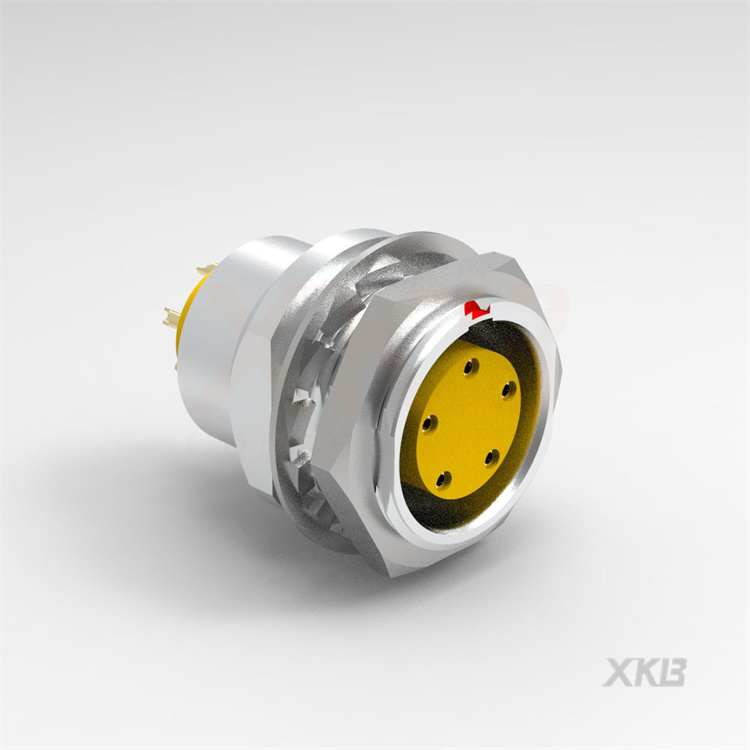

ZEG.1B.P05.CPL Circular Connector 5Pin
- Part number
- ZEG.1B.P05.CPL
- Category
- 标准环形B系列
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The ZEG.1B.P05.CPL is a 5-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
ZEG.1B.P05.CPL Circular Connector for Energy Control Systems
ZEG.1B.P05.CPL delivers dependable electrical connectivity for energy management systems and industrial power control equipment.
Connector Information
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,30-22AWG(2.3-7.6),螺 Female Fixed , Panel Mount ,5P,PEEK
Product Benefits
- Reliable contact performance
- Stable electrical transmission
- Compact connector design
- Secure push pull locking mechanism
- Long service life
Technical Specifications
- Pin Count: 5
- Protection Rating: IP50
- Housing Material: Brass
- Insulator Material: PEEK
- Termination Type: Solder
- Wire Gauge: 30-22AWG(2.3-7.6)
Applications
Ideal for energy control systems, power management equipment, industrial electronics, and automation platforms.
