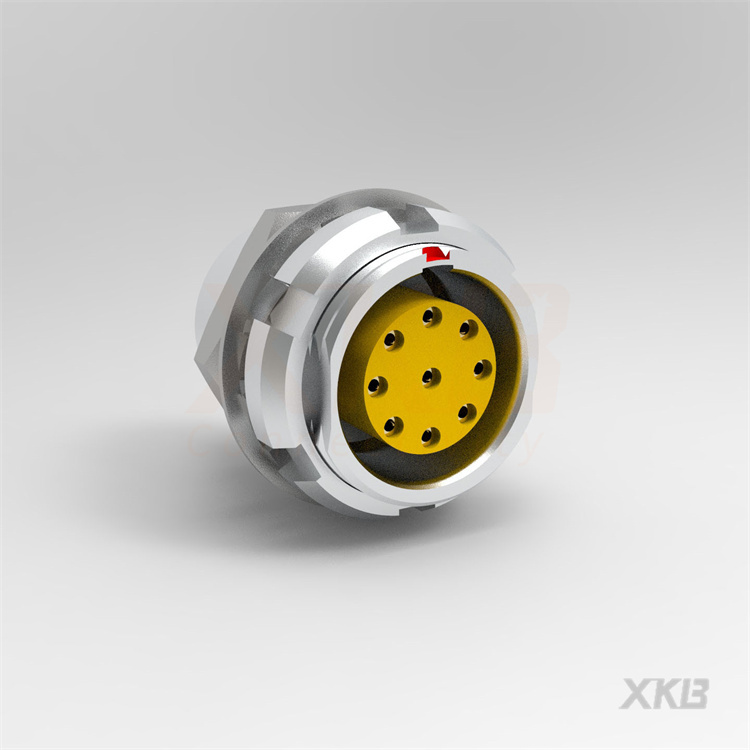

ZCG.0B.P09.CPL Circular Connector 9Pin
- Part number
- ZCG.0B.P09.CPL
- Category
- 标准环形B系列
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The ZCG.0B.P09.CPL is a 9-pin circular connector. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
ZCG.0B.P09.CPL Circular Connector for Electronic Control Units
ZCG.0B.P09.CPL is developed for electronic control units requiring dependable signal transmission and robust electrical connectivity.
Connector Specifications
Standard Circular Connector , Fixed Socket ( Female ), Brass IP50 Solder Type ,34-28AWG(1.4-5.6),螺 Female Fixed , Dual Nut Fixing ,9P,PEEK
Advantages
- Reliable contact system
- Compact circular interface
- Push pull quick locking design
- Long-term durability
- Stable signal performance
Technical Specifications
- Pin Count: 9
- Protection Rating: IP50
- Housing Material: Brass
- Insulator Material: PEEK
- Termination Type: Solder
- Wire Gauge: 34-28AWG(1.4-5.6)
Applications
Used in electronic control units, automation systems, communication devices, and industrial electronics.
