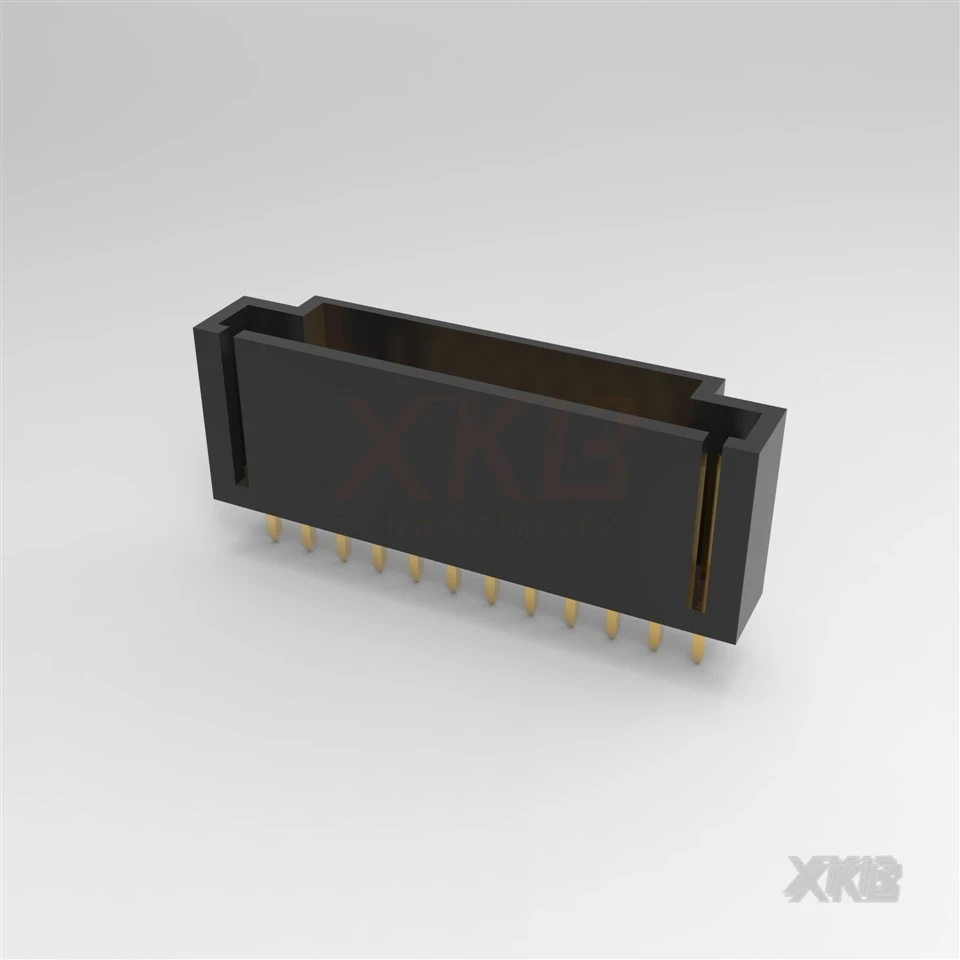

X9556WV-12-N0V01 2.54mm Wire To Board Connector 12Pin
- Part number
- X9556WV-12-N0V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9556WV-12-N0V01 is a 12-pin wire to board connector featuring 2.54 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Stable Signal Transmission Platform The X9556WV-12-N0V01 Wire to Board Connector provides a dependable connection platform for signal transmission applications. Featuring a 2.54mm pitch arrangement and 12 circuits, it supports reliable PCB-to-wire interconnection. Transmission Reliability Stable contact engagement helps maintain signal quality throughout system operation. The connector supports organized signal pathways while contributing to long-term connection reliability. Engineering Specification The connector incorporates a 2.54mm pitch structure and 12-position configuration to support various electronic designs. Product specification: 2.54mm 线对板连接器(Molex 70058 2.54小飞机)针座,180度,12P. Suitable Applications - Communication equipment - Industrial automation systems - Electronic controllers - Smart electronic devices - Monitoring and measurement equipment
Hot Tags: x9556wv-12-n0v01 2.54mm wire to board connector 12pin, China x9556wv-12-n0v01 2.54mm wire to board connector 12pin suppliers, manufacturers
