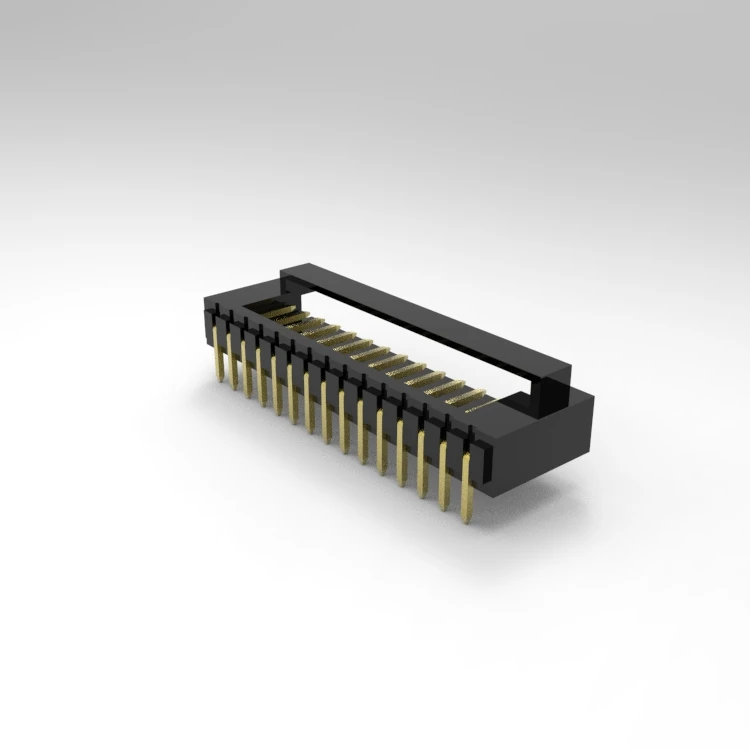

X9556WR-15-N0V01 2.54mm Wire To Board Connector 15Pin
- Part number
- X9556WR-15-N0V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9556WR-15-N0V01 is a 15-pin wire to board connector featuring 2.54 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Practical Connector Selection Solution The X9556WR-15-N0V01 Wire to Board Connector is suitable for applications requiring dependable PCB-to-wire connectivity. Featuring a 2.54mm pitch layout and 15 contact positions, it helps support efficient electronic system design. Application-Oriented Design Connector selection influences wiring organization, assembly efficiency, and long-term maintenance. The connector design supports stable electrical performance while accommodating diverse installation requirements. Engineering Benefits The 2.54mm pitch spacing and 15-position structure provide flexibility for a wide range of electronic products. Product specification includes: 2.54mm 线对板连接器(Molex 70058 2.54小飞机)针座,90度,15P. Application Examples - Industrial control systems - Electronic instruments - Communication devices - Consumer electronics - Embedded electronics
Hot Tags: x9556wr-15-n0v01 2.54mm wire to board connector 15pin, China x9556wr-15-n0v01 2.54mm wire to board connector 15pin suppliers, manufacturers
