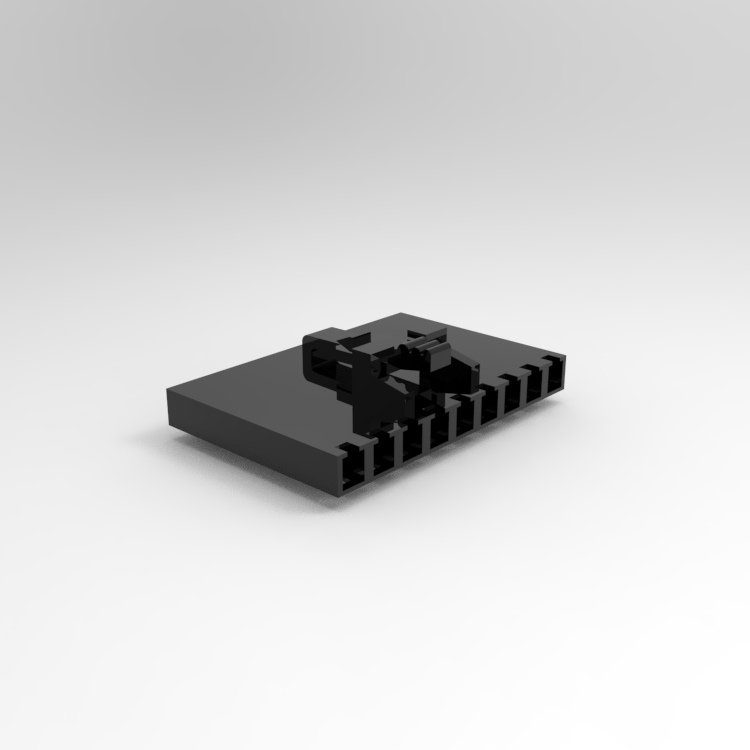

X9556H-09B-N0 2.54mm Wire To Board Connector 09Pin
- Part number
- X9556H-09B-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9556H-09B-N0 is a 09-pin wire to board connector featuring 2.54 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Electronic Device Integration Connector
The X9556H-09B-N0 connector is developed for electronic products requiring reliable wire-to-board interconnection. Its 2.54mm pitch layout and 09 contact positions support efficient PCB integration and stable electrical performance.
Device Connectivity Benefits
Stable electrical connections are essential for modern electronic devices. The connector design supports organized wiring arrangements while contributing to efficient assembly and maintenance.
Connector Specification
Featuring a 2.54mm pitch structure and 09-position configuration, the connector can be incorporated into various consumer electronics applications. Product specification: 2.54mm 线对板连接器(Molex 70058 2.54小飞机)公HSG,有凸有扣,09P.
Common Applications
- Home appliances
- Smart controllers
- Wireless communication devices
- Portable electronics
- Consumer monitoring equipment
