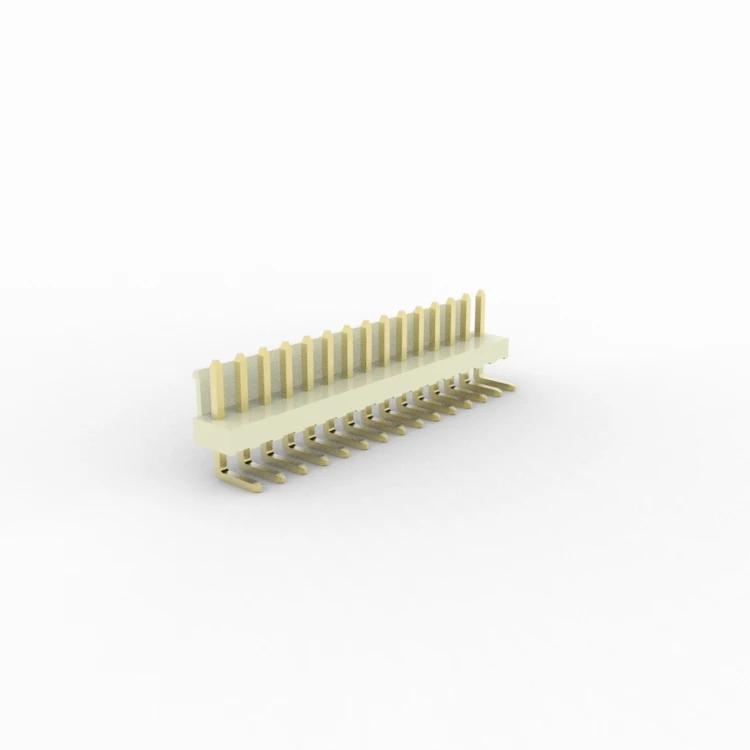

X9396WR-15A-46V01 3.96mm Wire To Board Connector 15Pin
- Part number
- X9396WR-15A-46V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9396WR-15A-46V01 is a 15-pin wire to board connector featuring 3.96 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Optimized Wire-to-Board Connector Selection
The X9396WR-15A-46V01 connector is designed to support reliable electrical connections in PCB-based electronic assemblies. Its 3.96mm pitch configuration and 15 contact positions make it suitable for a variety of connection architectures.
System Compatibility
Selecting the correct connector can improve wiring efficiency and system organization. The connector supports flexible integration into both compact and complex electronic designs.
Connector Specification
Featuring a 3.96mm pitch arrangement and 15 available contacts, this connector can satisfy a broad range of electrical interconnection requirements. Product details: 3.96mm 线对板连接器(JST VH)针座,90度,高弯,46料,镀金1U＂,15P.
Suitable Applications
• Industrial automation
• Control boards
• Communication modules
• Electronic monitoring devices
• Consumer products
Hot Tags: x9396wr-15a-46v01 3.96mm wire to board connector 15pin, China x9396wr-15a-46v01 3.96mm wire to board connector 15pin suppliers, manufacturers
