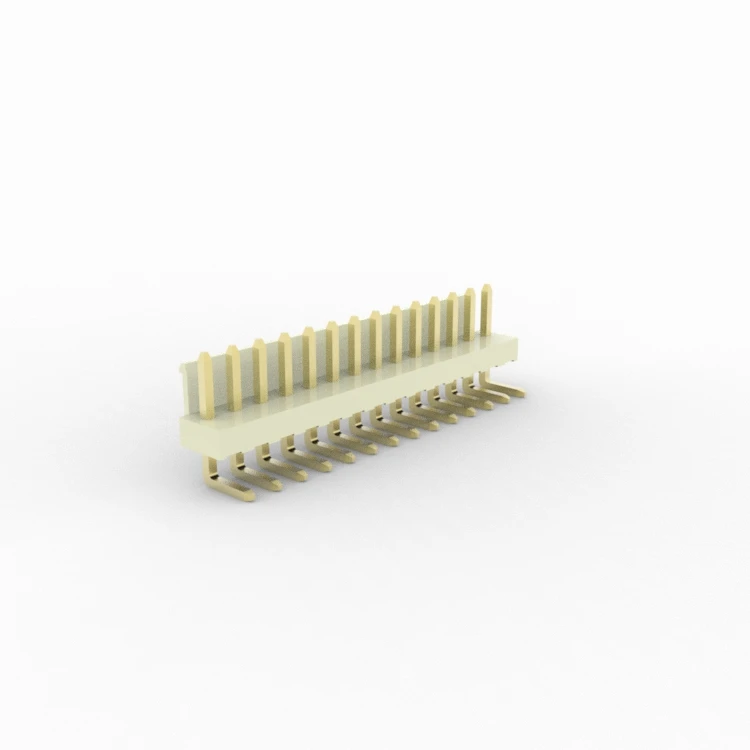

X9396WR-14A-46V01 3.96mm Wire To Board Connector 14Pin
- Part number
- X9396WR-14A-46V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9396WR-14A-46V01 is a 14-pin wire to board connector featuring 3.96 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Practical Connector Selection Solution
The X9396WR-14A-46V01 Wire to Board Connector is suitable for applications requiring dependable PCB-to-wire connectivity. Featuring a 3.96mm pitch layout and 14 contact positions, it helps support efficient electronic system design.
Application-Oriented Design
Connector selection influences wiring organization, assembly efficiency, and long-term maintenance. The connector design supports stable electrical performance while accommodating diverse installation requirements.
Engineering Benefits
The 3.96mm pitch spacing and 14-position structure provide flexibility for a wide range of electronic products. Product specification includes: 3.96mm 线对板连接器(JST VH)针座,90度,高弯,46料,镀金1U＂,14P.
Application Examples
• Industrial control systems
• Electronic instruments
• Communication devices
• Consumer electronics
• Embedded electronics
Hot Tags: x9396wr-14a-46v01 3.96mm wire to board connector 14pin, China x9396wr-14a-46v01 3.96mm wire to board connector 14pin suppliers, manufacturers
