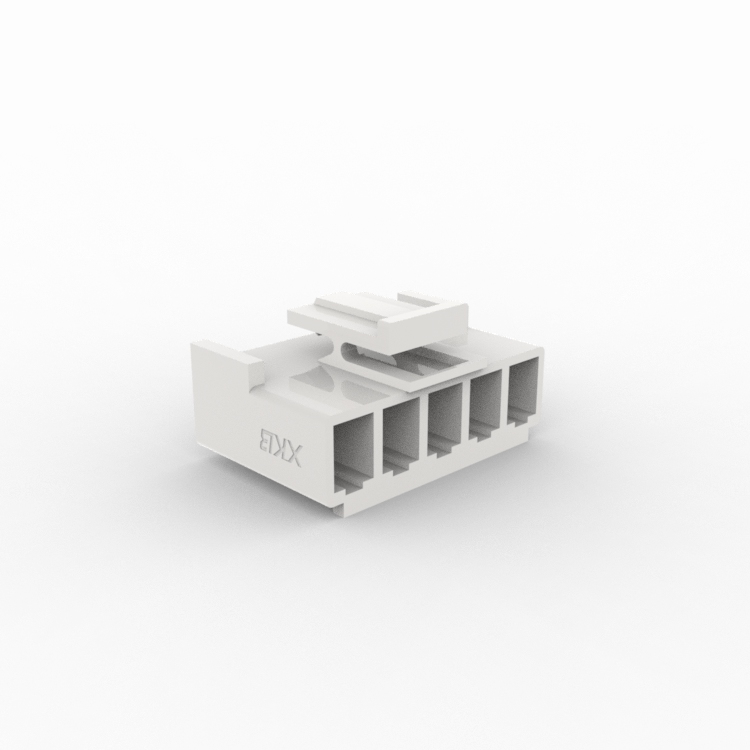

X9396H-05-N0 3.96mm Wire To Board Connector 05Pin
- Part number
- X9396H-05-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X9396H-05-N0 is a 05-pin wire to board connector featuring 3.96 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Selecting the Right Wire to Board Connector
The X9396H-05-N0 Wire to Board Connector is designed to support reliable electrical interconnection between wire harness assemblies and PCB circuits. Featuring a 3.96mm pitch configuration and 05 contact positions, it provides a practical solution for a wide variety of electronic applications.
Connector Selection Considerations
Choosing an appropriate connector requires evaluating circuit requirements, available PCB space, and wiring architecture. The 3.96mm pitch layout and 05-position configuration help support flexible system design while maintaining dependable connectivity.
Product Overview
This connector incorporates a 3.96mm pitch structure and 05 contacts to accommodate diverse interconnection requirements. Product specification: 3.96mm 线对板连接器(JST VH)HSG,05P.
Typical Applications
• Industrial electronics
• Communication equipment
• Consumer products
• Embedded systems
• Control modules
