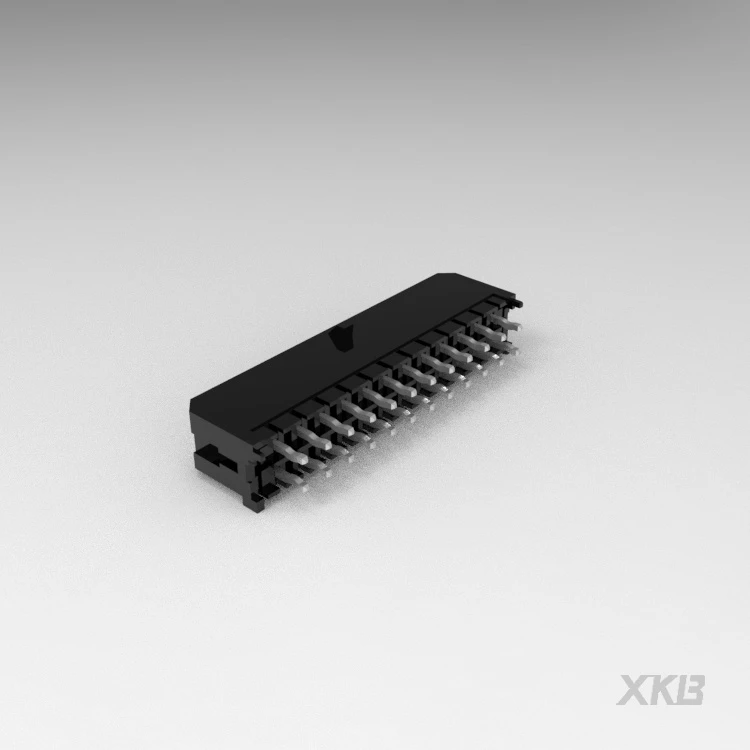

X3025WV-2x12-LPSW 3.00mm Wire To Board Connector 12Pin
- Part number
- X3025WV-2x12-LPSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X3025WV-2x12-LPSW is a 12-pin wire to board connector featuring 3.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire-to-Board Reliability Enhancement
The X3025WV-2x12-LPSW connector is designed to establish reliable electrical connections between cable assemblies and printed circuit boards. Its 3.00mm pitch spacing and 12 circuits support stable system integration.
Operational Reliability
Reliable wire-to-board interfaces contribute to overall equipment performance. The connector design helps maintain secure contact engagement while supporting consistent electrical transmission.
Engineering Benefits
The 3.00mm pitch structure and 12-position arrangement provide flexibility for PCB designers seeking efficient interconnection solutions. Detailed specification: 3.00mm 线对线连接器(MX43020/43025)针座,180度,双排,带柱,LCP料,镀雾锡,2x12P.
Suitable Applications
• Electronic controllers
• Industrial equipment
• Communication products
• Embedded platforms
• Consumer electronic devices
