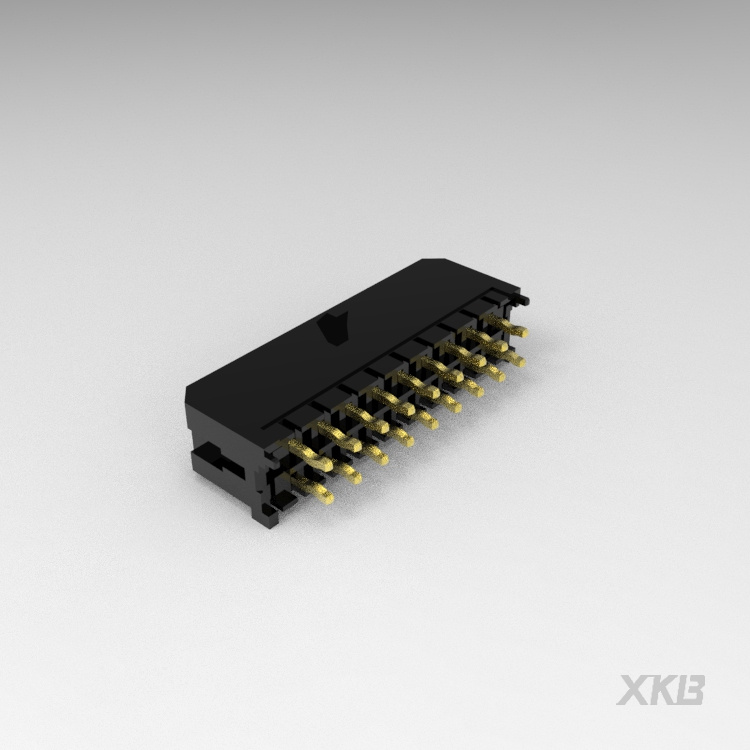

X3025WV-2x09-LPV01 3.00mm Wire To Board Connector 09Pin
- Part number
- X3025WV-2x09-LPV01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X3025WV-2x09-LPV01 is a 09-pin wire to board connector featuring 3.00 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Application-Oriented Wire Harness Connector
The X3025WV-2x09-LPV01 connector is suitable for electronic systems requiring efficient wire harness integration with PCB assemblies. Featuring a 3.00mm pitch structure and 09 contact positions, it supports reliable electrical performance across diverse applications.
Versatile Application Support
Different industries require dependable interconnection solutions for signal and power transmission. The connector design supports flexible deployment across a wide variety of electronic products.
Engineering Features
The 3.00mm pitch spacing and 09-position layout provide flexibility for system designers seeking organized electrical connectivity. Product specification: 3.00mm 线对线连接器(MX43020/43025)针座,180度,双排,带柱,LCP料,镀金1U＂,2x09P.
Target Applications
• Industrial electronics
• Consumer devices
• Automation systems
• Communication equipment
• Electronic instrumentation
