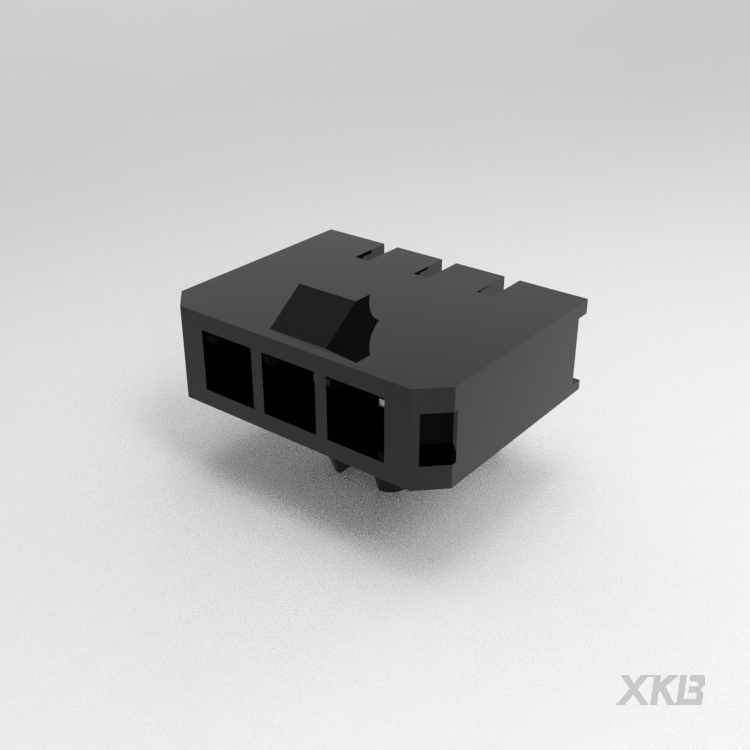

X3025WR-03-LPSW 3.00mm Wire To Board Connector 04Pin
- Part number
- X3025WR-03-LPSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X3025WR-03-LPSW is a 04-pin wire to board connector featuring 3.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire Harness Assembly Connector
The X3025WR-03-LPSW connector is suitable for applications requiring organized wire harness integration with PCB assemblies. Featuring a 3.00mm pitch configuration and 04 contact positions, it supports efficient electrical connectivity.
Assembly Efficiency
Connector selection influences both production efficiency and long-term maintenance. The design supports simplified wiring arrangements while helping reduce assembly complexity.
Engineering Features
The 3.00mm pitch spacing and 04 circuits provide flexibility for different harness configurations. Detailed product information: 3.00mm 线对线连接器(MX43020/43025)针座,90度,单排,带柱,LCP料,镀雾锡,04P.
Target Applications
• Electronic instruments
• Automation controllers
• Consumer electronics
• Industrial systems
• Embedded platforms
Hot Tags: x3025wr-03-lpsw 3.00mm wire to board connector 04pin, China x3025wr-03-lpsw 3.00mm wire to board connector 04pin suppliers, manufacturers
