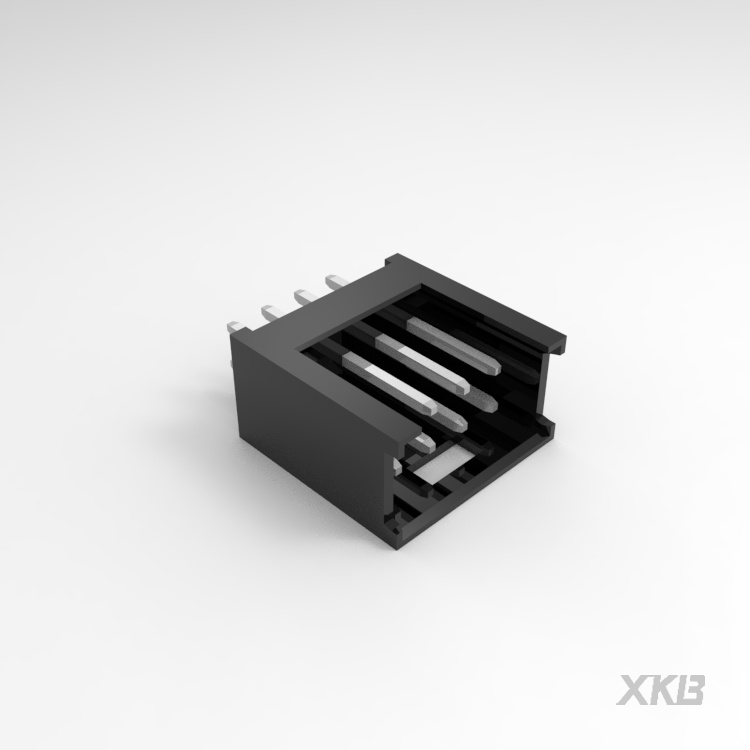

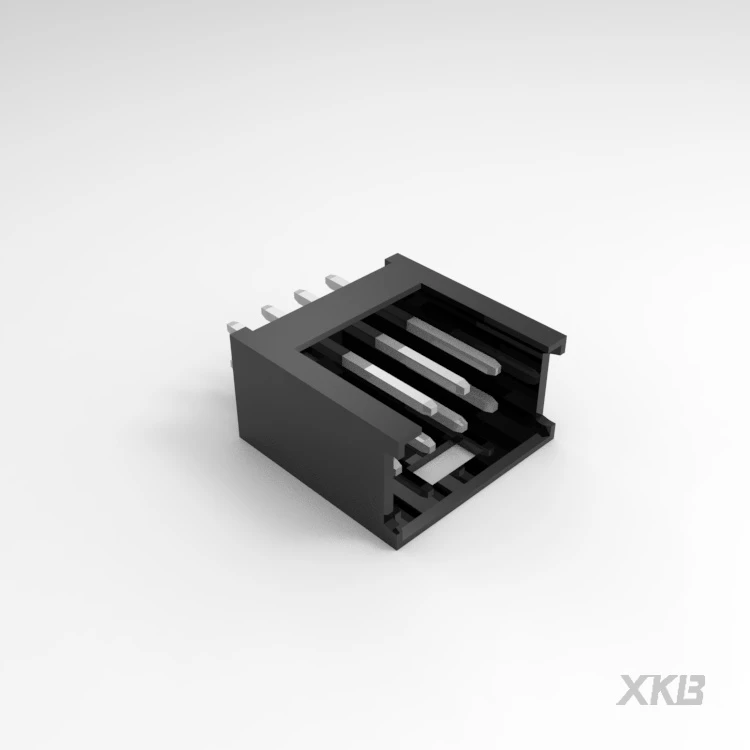

X2530WV-2x04-PTSN 2.54mm Wire To Board Connector 04Pin
- Part number
- X2530WV-2x04-PTSN
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X2530WV-2x04-PTSN is a 04-pin wire to board connector featuring 2.54 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Board-Level Wiring Optimization
The X2530WV-2x04-PTSN Wire to Board Connector is developed for PCB-based electrical systems that require stable wire harness integration. The 2.54mm pitch structure and 04 contacts support efficient circuit organization.
PCB Connection Advantages
Reliable board connectivity contributes to overall system performance. The connector design helps reduce wiring complexity while improving installation efficiency and maintenance convenience.
Product Overview
Featuring a 2.54mm pitch arrangement and 04 contact positions, this connector can be incorporated into numerous PCB layouts. Detailed specification: 2.54mm 线对板连接器(AMP 2.54)针座,180度,双排,2x04P.
Recommended Applications
- Automation equipment
- Industrial controllers
- Consumer electronics
- Power modules
- Embedded systems
