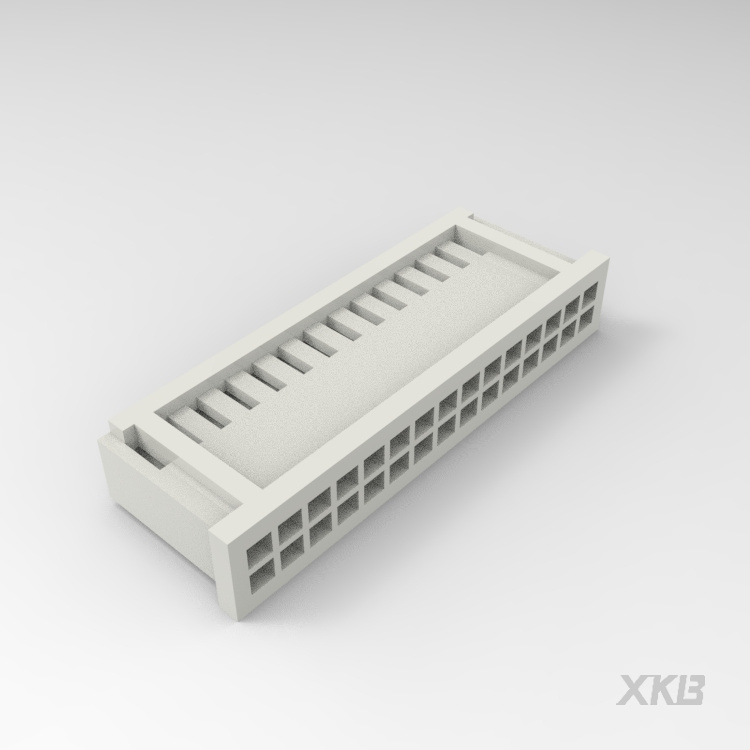

X2530H-2x15-PT 2.54mm Wire To Board Connector 15Pin
- Part number
- X2530H-2x15-PT
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X2530H-2x15-PT is a 15-pin wire to board connector featuring 2.54 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire Harness Assembly Connector
The X2530H-2x15-PT connector is suitable for applications requiring organized wire harness integration with PCB assemblies. Featuring a 2.54mm pitch configuration and 15 contact positions, it supports efficient electrical connectivity.
Assembly Efficiency
Connector selection influences both production efficiency and long-term maintenance. The design supports simplified wiring arrangements while helping reduce assembly complexity.
Engineering Features
The 2.54mm pitch spacing and 15 circuits provide flexibility for different harness configurations. Detailed product information: 2.54mm 线对板连接器(AMP 2.54)公HSG,双排,2x15P.
Target Applications
- Electronic instruments
- Automation controllers
- Consumer electronics
- Industrial systems
- Embedded platforms
