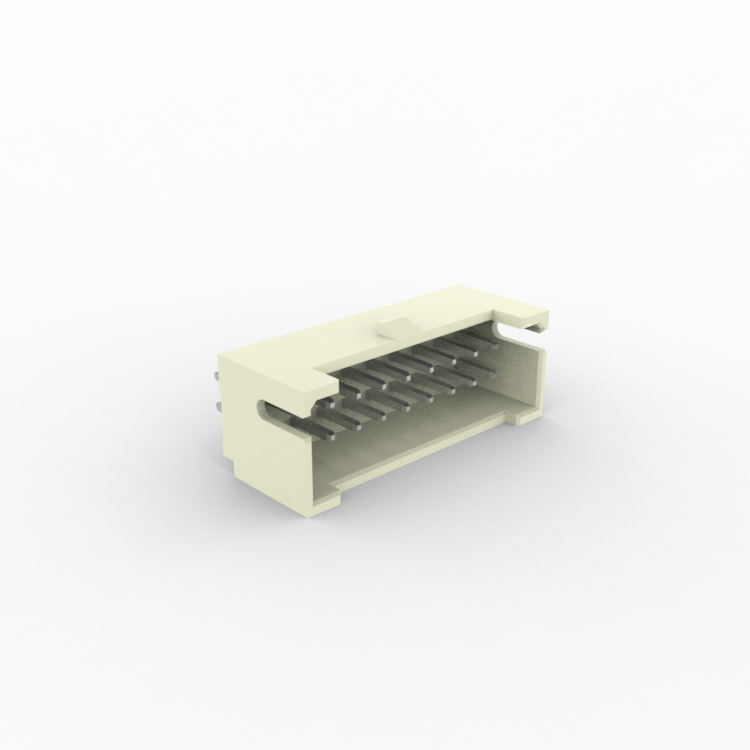

X2026WV-2x09D-46SN 2.00mm Wire To Board Connector 09Pin
- Part number
- X2026WV-2x09D-46SN
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X2026WV-2x09D-46SN is a 09-pin wire to board connector featuring 2.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire Harness Connection Solution
The X2026WV-2x09D-46SN Wire to Board Connector is designed to provide a dependable interface between wire harness assemblies and printed circuit boards. Featuring a 2.00mm pitch configuration and 09 contact positions, it supports organized wiring structures across various electronic systems.
Harness Design Benefits
Wire harness organization plays a critical role in equipment reliability. The connector helps simplify cable routing while supporting efficient connection management in both compact and large-scale assemblies.
Product Features
The 2.00mm pitch structure and 09-position arrangement support flexible harness configurations while maintaining reliable board connectivity. Product specification: 2.00mm 线对板连接器(RH PHB)针座,180度,46料,2x09P.
Typical Applications
- Wire harness assemblies
- Industrial controllers
- Consumer electronics
- Communication equipment
- Embedded systems
Hot Tags: x2026wv-2x09d-46sn 2.00mm wire to board connector 09pin, China x2026wv-2x09d-46sn 2.00mm wire to board connector 09pin suppliers, manufacturers
