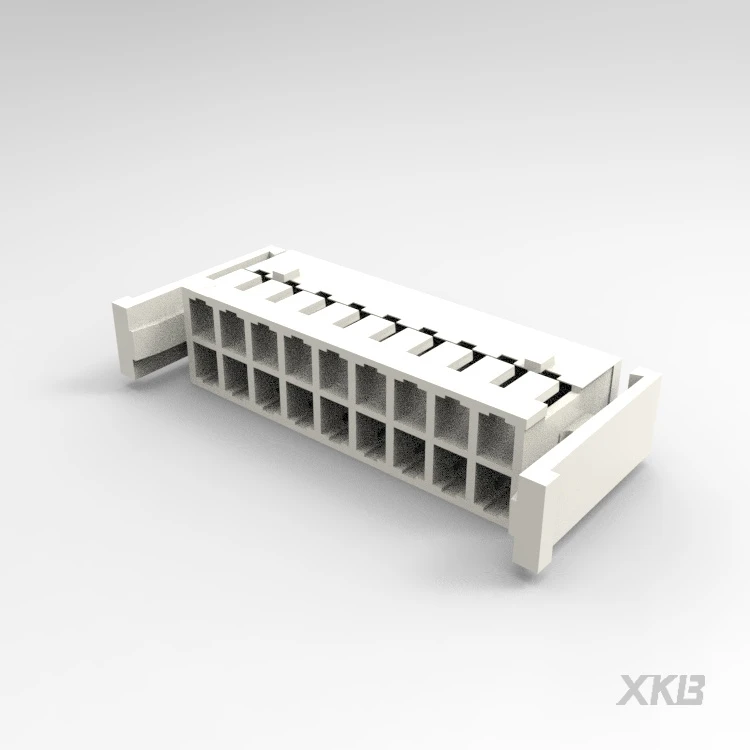

X2026H-2x09AH-N0 2.00mm Wire To Board Connector 09Pin
- Part number
- X2026H-2x09AH-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X2026H-2x09AH-N0 is a 09-pin wire to board connector featuring 2.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Reliable Wire Harness Connectivity
The X2026H-2x09AH-N0 Wire to Board Connector is suitable for applications where stable wire harness termination and PCB connectivity are required. The 2.00mm pitch layout and 09 contacts support efficient electrical integration.
Connection Performance
Designed to provide dependable electrical contact, this connector helps maintain signal integrity and connection consistency throughout the service life of the equipment.
Connector Specification
Featuring a 2.00mm pitch and 09 contact positions, the connector supports compact installation while accommodating various board-level connection requirements. Product specification: 2.00mm 线对板连接器(JST PHD)HSG,两边带扣,2x09P.
Recommended Applications
- Industrial automation devices
- Consumer electronics
- Smart equipment
- Power control systems
- Electronic modules
