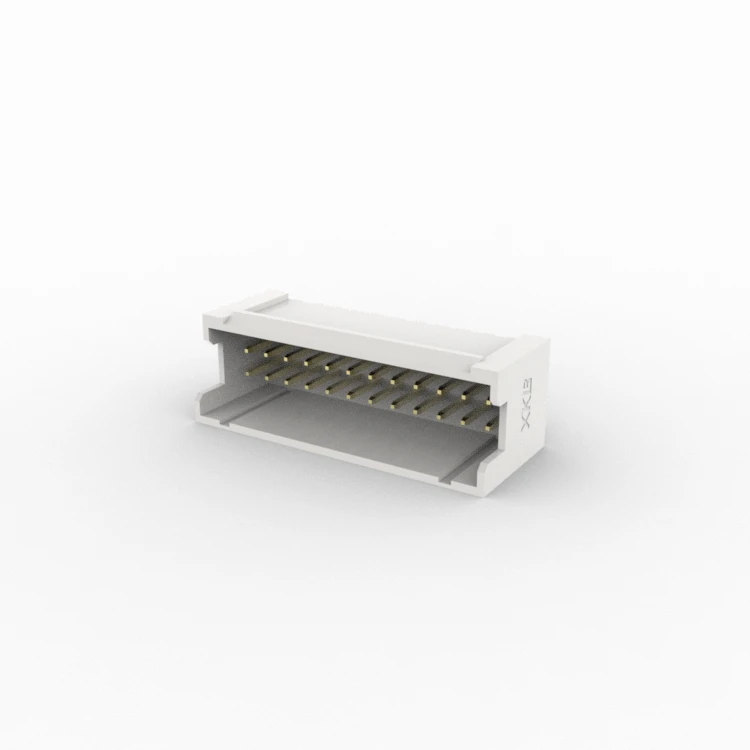

X2015WV-2x12-46V01 2.00mm Wire To Board Connector 12Pin
- Part number
- X2015WV-2x12-46V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X2015WV-2x12-46V01 is a 12-pin wire to board connector featuring 2.00 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Board-Level Wiring Optimization
The X2015WV-2x12-46V01 Wire to Board Connector is developed for PCB-based electrical systems that require stable wire harness integration. The 2.00mm pitch structure and 12 contacts support efficient circuit organization.
PCB Connection Advantages
Reliable board connectivity contributes to overall system performance. The connector design helps reduce wiring complexity while improving installation efficiency and maintenance convenience.
Product Overview
Featuring a 2.00mm pitch arrangement and 12 contact positions, this connector can be incorporated into numerous PCB layouts. Detailed specification: 2.00mm 线对板连接器(JST PAD)针座,180度带柱,PA46料,镀金1U＂,2x12P.
Recommended Applications
- Automation equipment
- Industrial controllers
- Consumer electronics
- Power modules
- Embedded systems
