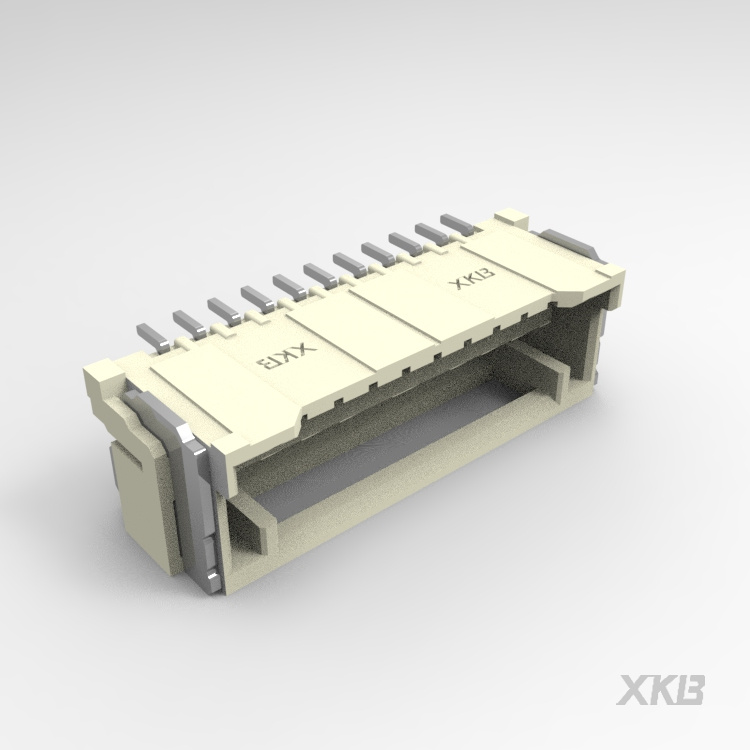

X1515WRS-11-LPSW 1.5mm Wire To Board Connector 11Pin
- Part number
- X1515WRS-11-LPSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1515WRS-11-LPSW is a 11-pin wire to board connector featuring 1.5 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Selecting the Right Wire to Board Connector
The X1515WRS-11-LPSW Wire to Board Connector is designed to support reliable electrical interconnection between wire harness assemblies and PCB circuits. Featuring a 1.5mm pitch configuration and 11 contact positions, it provides a practical solution for a wide variety of electronic applications.
Connector Selection Considerations
Choosing an appropriate connector requires evaluating circuit requirements, available PCB space, and wiring architecture. The 1.5mm pitch layout and 11-position configuration help support flexible system design while maintaining dependable connectivity.
Product Overview
This connector incorporates a 1.5mm pitch structure and 11 contacts to accommodate diverse interconnection requirements. Product specification: 1.5mm 线对板连接器(Molex 502585)针座,卧贴,单排,LCP料,11P.
Typical Applications
- Industrial electronics
- Communication equipment
- Consumer products
- Embedded systems
- Control modules
