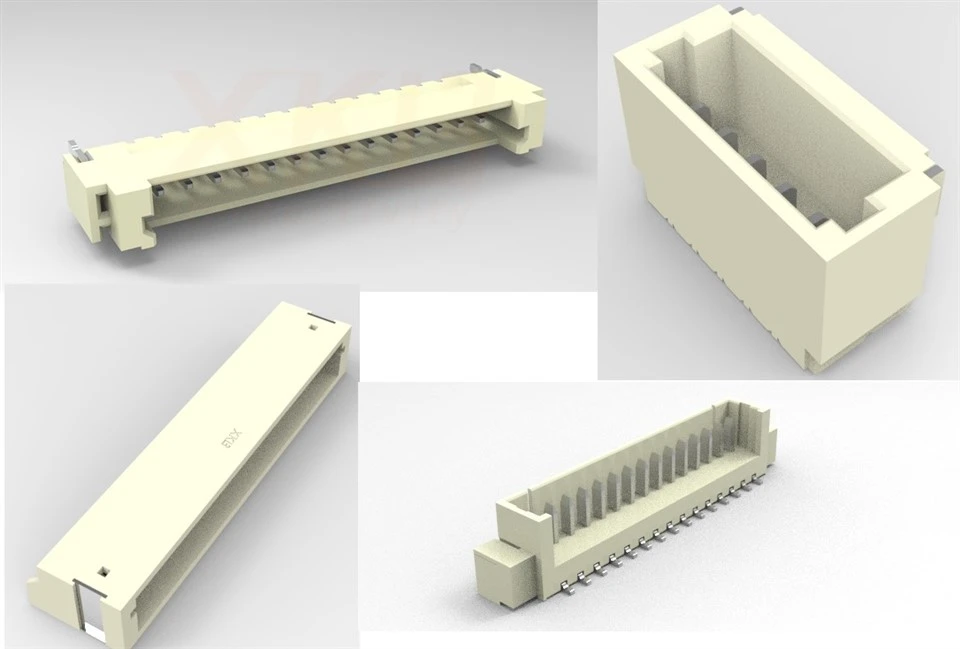

X1506WVS-12-9TSW 1.5mm Wire To Board Connector 12Pin
- Part number
- X1506WVS-12-9TSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1506WVS-12-9TSW is a 12-pin wire to board connector featuring 1.5 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Power Connectivity for Electronic Equipment
The X1506WVS-12-9TSW connector is suitable for electronic systems that require dependable power transfer between PCB circuits and external wiring assemblies. Featuring a 1.5mm pitch layout and 12 contacts, it supports efficient electrical integration.
Connection Performance
Stable electrical contact is important for maintaining consistent power delivery. The connector design helps reduce connection interruptions while supporting long-term equipment reliability.
Product Details
With a 1.5mm pitch spacing and 12-position configuration, the connector supports a variety of board-level power connection requirements. Additional specification details: 1.5mm 线对板连接器(ZER)针座,立贴9T料,12P.
Common Applications
- Power control modules
- Industrial automation systems
- Electronic monitoring devices
- Consumer products
- Embedded platforms
