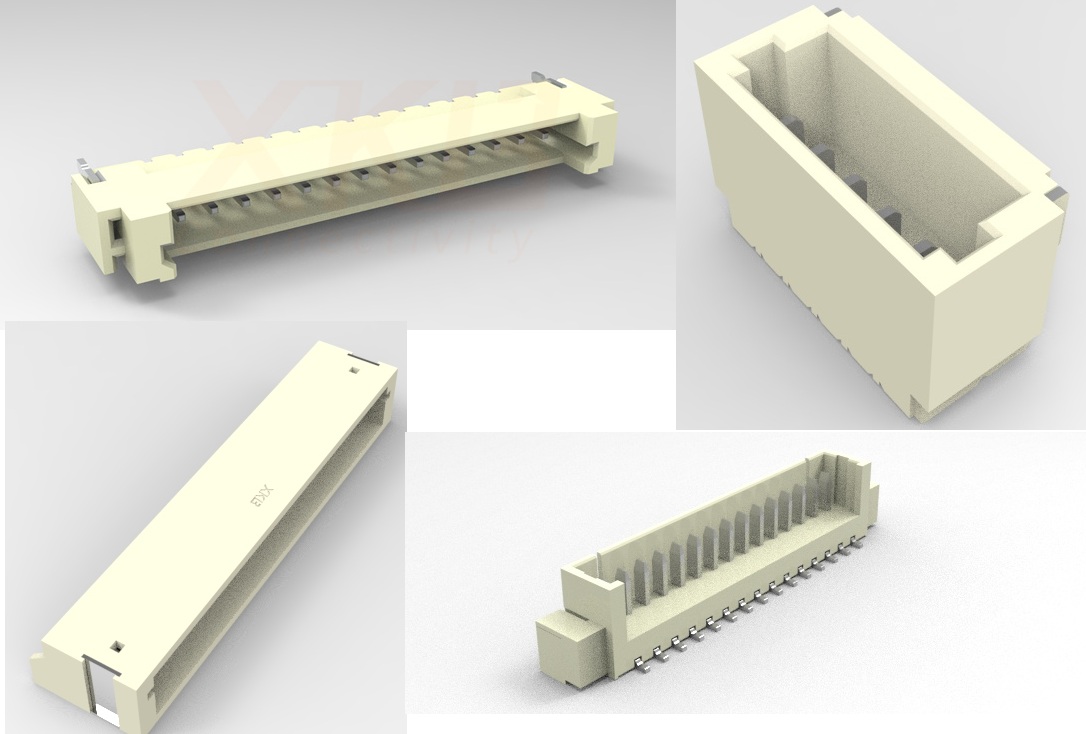

X1506WVS-05-9TSW 1.5mm Wire To Board Connector 05Pin
- Part number
- X1506WVS-05-9TSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1506WVS-05-9TSW is a 05-pin wire to board connector featuring 1.5 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
PCB Signal Routing Connector
The X1506WVS-05-9TSW Wire to Board Connector is suitable for applications requiring organized signal transmission between wire harnesses and printed circuit boards. The connector utilizes a 1.5mm pitch design and 05 contact positions.
Signal Management Benefits
Efficient signal routing helps improve system organization and electrical performance. The connector supports structured connection layouts while maintaining dependable contact engagement.
Product Features
The 05-position arrangement combined with the 1.5mm pitch structure provides flexibility for signal transmission requirements in modern electronic products. Product details include: 1.5mm 线对板连接器(ZER)针座,立贴9T料,05P.
Recommended Applications
- Automation equipment
- Electronic instruments
- Smart devices
- Control boards
- Industrial electronics
