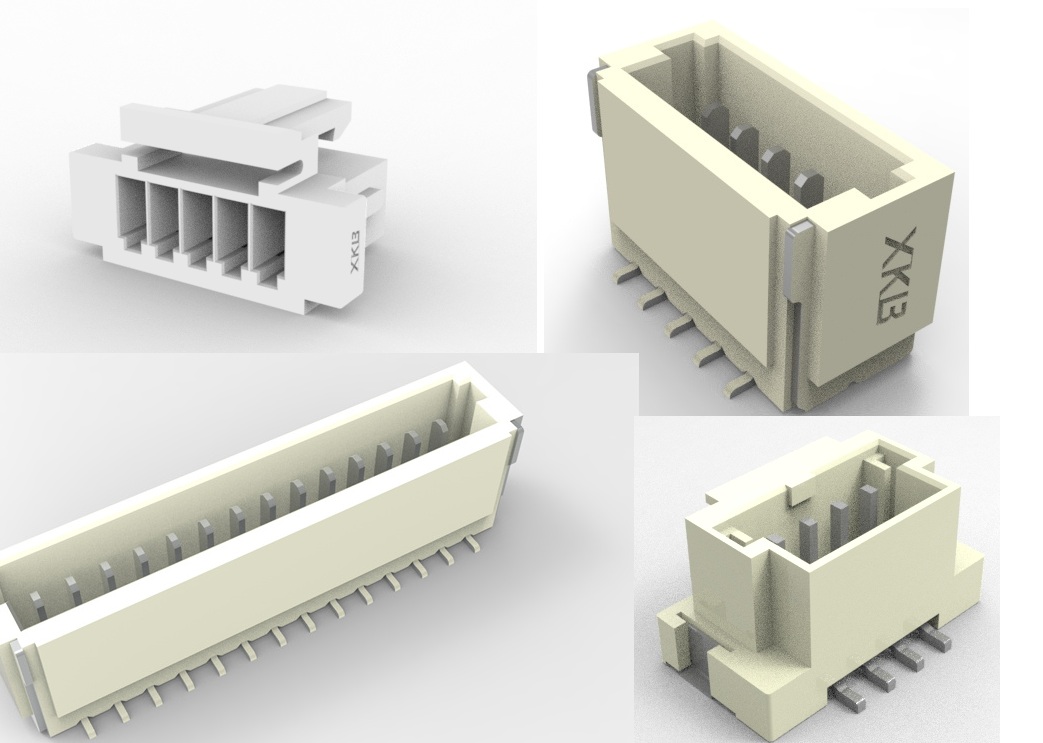

X1502WV-20-46V03 1.50mm Wire To Board Connector 20Pin
- Part number
- X1502WV-20-46V03
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1502WV-20-46V03 is a 20-pin wire to board connector featuring 1.50 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Connector Choice for Electronic Design Projects
The X1502WV-20-46V03 connector provides engineers with a dependable wire-to-board connection platform. Its 1.50mm pitch arrangement and 20 contact positions support efficient integration into various PCB-based electronic systems.
Design Flexibility
Electronic designers often require connectors that balance size, performance, and installation convenience. The connector structure supports organized circuit layouts while helping simplify board-level integration.
Technical Characteristics
With a 1.50mm pitch configuration and 20 available contacts, this connector can support numerous electrical connection requirements. Additional product information: 1.50mm 线对板连接器(JST ZH)针座,180度,针长2.8mm,46料,镀金3U＂ 20P.
Recommended Uses
- Automation equipment
- Electronic controllers
- Smart devices
- Monitoring systems
- Industrial communication hardware
