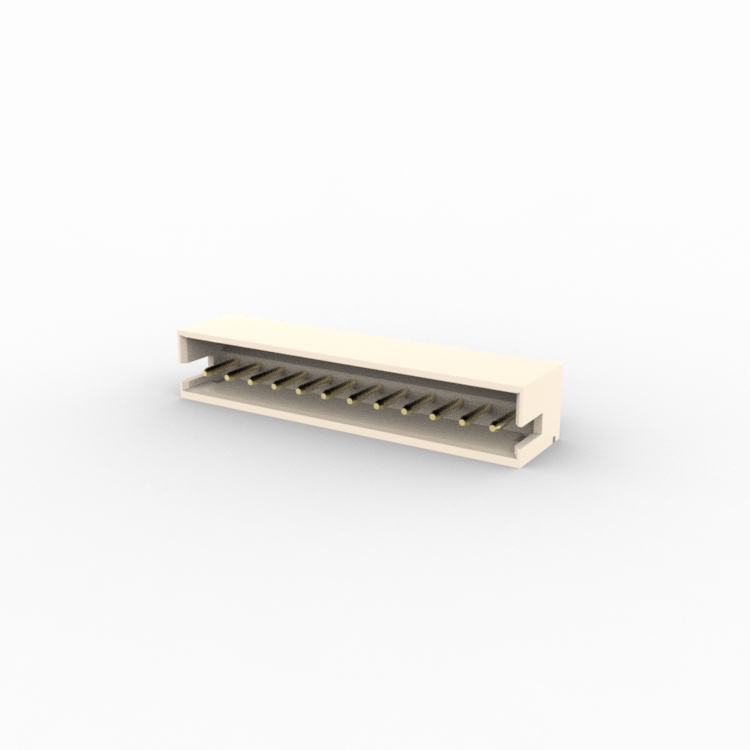

X1502WV-12K-46V01 1.50mm Wire To Board Connector 12Pin
- Part number
- X1502WV-12K-46V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1502WV-12K-46V01 is a 12-pin wire to board connector featuring 1.50 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Compact Connection Solution for Smart Devices
The X1502WV-12K-46V01 connector is suitable for smart electronic products requiring dependable wire-to-board connectivity. Its 1.50mm pitch structure and 12 contact positions support efficient integration into compact device architectures.
Space-Saving Design
Consumer products often demand efficient use of available space. The connector design supports organized PCB layouts while maintaining reliable electrical connections throughout device operation.
Technical Overview
The connector utilizes a 1.50mm pitch configuration and 12-position arrangement suitable for a broad range of electronic designs. Detailed product information: 1.50mm 线对板连接器(JST ZH)针座,180度,打K,46料,镀金1U＂,12P.
Application Examples
- Smart sensors
- Wireless devices
- Home automation products
- Portable electronics
- Consumer electronic equipment
Hot Tags: x1502wv-12k-46v01 1.50mm wire to board connector 12pin, China x1502wv-12k-46v01 1.50mm wire to board connector 12pin suppliers, manufacturers
