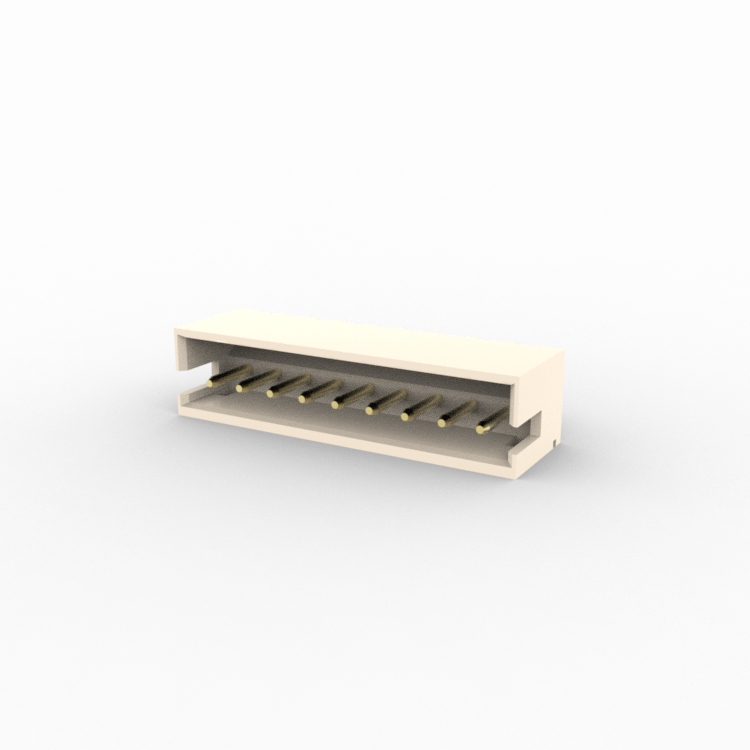

X1502WV-09K-46V01 1.50mm Wire To Board Connector 09Pin
- Part number
- X1502WV-09K-46V01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1502WV-09K-46V01 is a 09-pin wire to board connector featuring 1.50 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Efficient Power Distribution Connector
The X1502WV-09K-46V01 Wire to Board Connector provides a practical solution for transferring power between wire harnesses and PCB assemblies. Its 1.50mm pitch structure and 09 contact positions support organized electrical integration.
Power Routing Advantages
Proper connector selection helps improve power routing efficiency within electronic products. The connector design supports structured wiring arrangements while maintaining reliable electrical performance.
Engineering Characteristics
The connector utilizes a 1.50mm pitch configuration and 09 contact arrangement to accommodate various power distribution requirements. Product specification includes: 1.50mm 线对板连接器(JST ZH)针座,180度,打K,46料,镀金1U＂,09P.
Application Examples
- Industrial control equipment
- Electronic controllers
- Smart devices
- Power conversion systems
- Communication hardware
