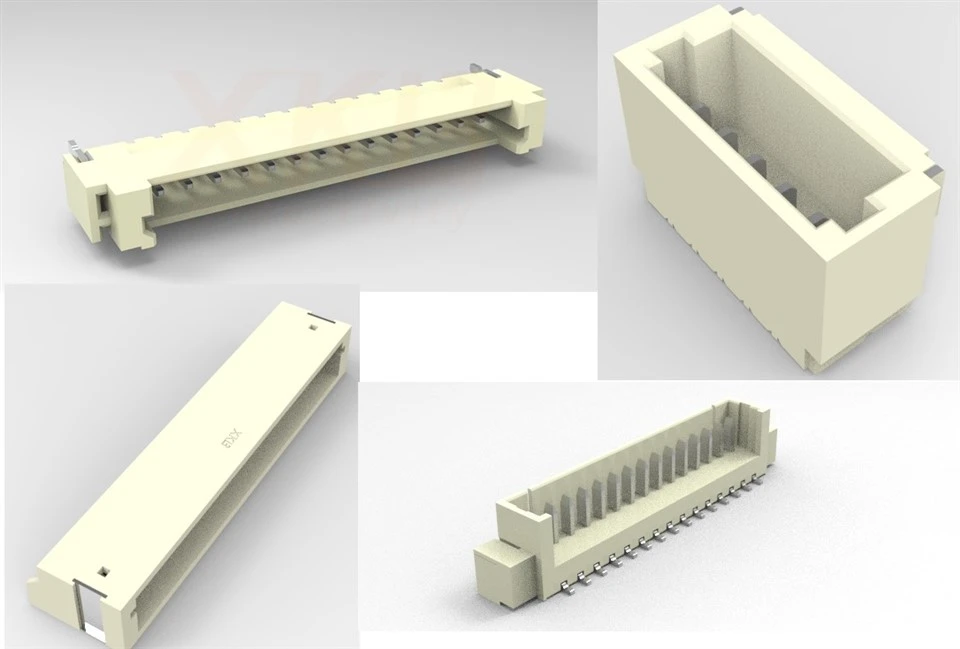

X1256WVS-05L-LPSN 1.25mm Wire To Board Connector
- Part number
- X1256WVS-05L-LPSN
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1256WVS-05L-LPSN is a wire to board connector featuring 1.25 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Structured Wire Harness Connectivity
The X1256WVS-05L-LPSN Wire to Board Connector is designed for structured cable-to-board interconnection requirements. Its 1.25mm pitch arrangement and contact positions support reliable integration into modern electronic equipment.
Harness Management Performance
Efficient wire harness design contributes to improved equipment organization and serviceability. The connector supports clean wiring layouts while maintaining dependable electrical continuity.
Product Specification
With a 1.25mm pitch configuration and available contacts, the connector can accommodate various board-level connection requirements. Product details: 1.25mm 线对板连接器(505568)针座,立贴,中间带扣黑色,LCP料,镀锡.
Recommended Applications
- Industrial equipment
- Communication hardware
- Electronic control systems
- Smart electronics
- Power distribution modules
Hot Tags: x1256wvs-05l-lpsn 1.25mm wire to board connector, China x1256wvs-05l-lpsn 1.25mm wire to board connector suppliers, manufacturers
