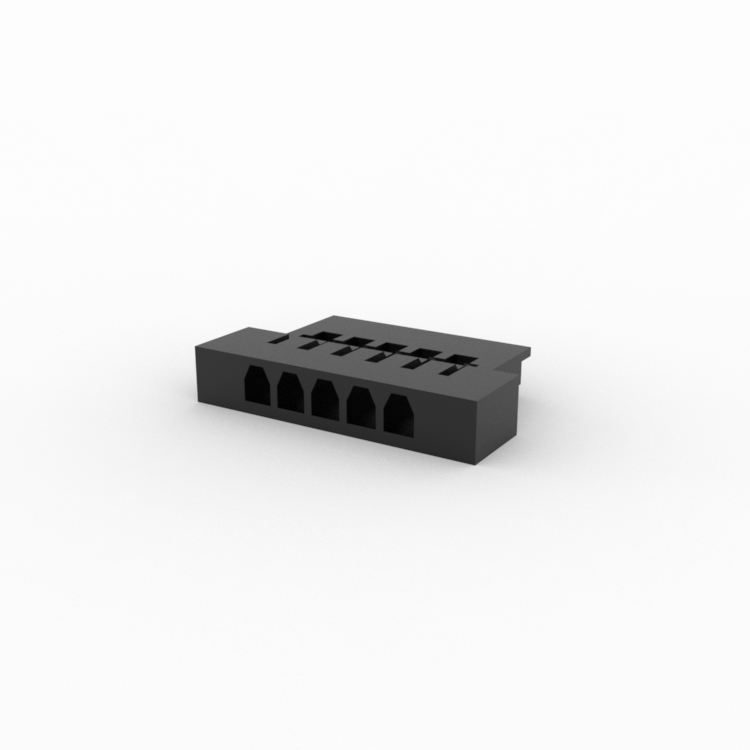

X1255H-05A-N0 1.25mm Wire To Board Connector 05Pin
- Part number
- X1255H-05A-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1255H-05A-N0 is a 05-pin wire to board connector featuring 1.25 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Connector for Consumer Electronic Devices
The X1255H-05A-N0 Wire to Board Connector is designed to support reliable electrical interconnection in consumer electronic products. Featuring a 1.25mm pitch configuration and 05 contact positions, it provides an efficient connection solution for compact electronic assemblies.
Consumer Electronics Integration
Modern consumer devices require connectors that support organized wiring and dependable electrical performance. The connector helps establish stable board-to-wire connectivity while contributing to compact product design.
Product Characteristics
With a 1.25mm pitch arrangement and 05 available contacts, this connector can accommodate a variety of consumer electronic applications. Product specification: 1.25mm 线对板连接器(JAE FI-S)HSG,双凸05P.
Typical Applications
- Smart home devices
- Portable electronics
- Home appliances
- Consumer control modules
- Electronic accessories
Hot Tags: x1255h-05a-n0 1.25mm wire to board connector 05pin, China x1255h-05a-n0 1.25mm wire to board connector 05pin suppliers, manufacturers
