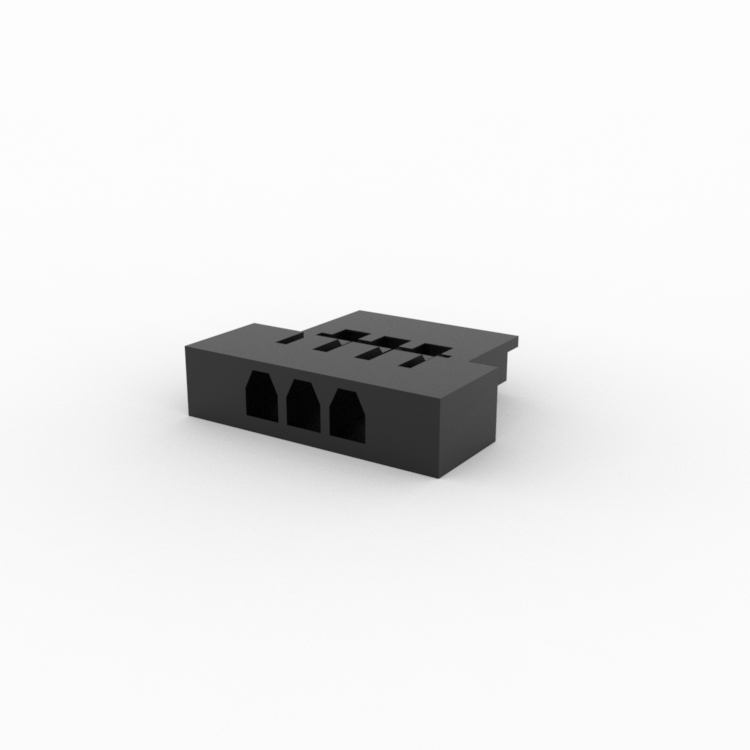

X1255H-03A-N0 1.25mm Wire To Board Connector 03Pin
- Part number
- X1255H-03A-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1255H-03A-N0 is a 03-pin wire to board connector featuring 1.25 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Industrial Electronics Connection Platform
The X1255H-03A-N0 connector is suitable for industrial electronic systems requiring reliable wire-to-board connectivity. Featuring a 1.25mm pitch arrangement and 03 contact positions, it supports efficient electrical integration across various applications.
Operational Stability
Stable connector performance contributes to the overall reliability of industrial equipment. The connector supports consistent electrical transmission and organized wiring structures throughout system operation.
Design Advantages
With a 1.25mm pitch structure and 03 available circuits, the connector can be incorporated into compact industrial designs while maintaining dependable connectivity. Product specification: 1.25mm 线对板连接器(JAE FI-S)HSG,单凸03P.
Common Applications
- Industrial machinery
- Automation systems
- Power management equipment
- Monitoring instruments
- Electronic controllers
Hot Tags: x1255h-03a-n0 1.25mm wire to board connector 03pin, China x1255h-03a-n0 1.25mm wire to board connector 03pin suppliers, manufacturers
