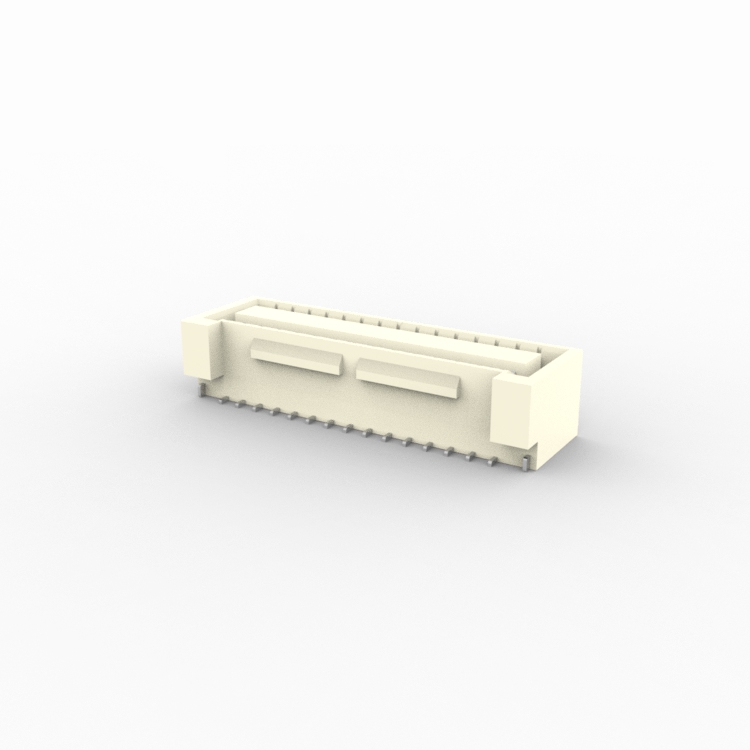

X1254WVS-2x15A-LPSN 1.25mm Wire To Board Connector 15Pin
- Part number
- X1254WVS-2x15A-LPSN
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1254WVS-2x15A-LPSN is a 15-pin wire to board connector featuring 1.25 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Efficient Harness-to-PCB Interface
The X1254WVS-2x15A-LPSN connector is developed for applications requiring secure wire harness termination and PCB integration. With a 1.25mm pitch design and 15 available circuits, it supports stable electrical connections throughout the system.
Cable Management Advantages
Proper cable organization improves assembly quality and maintenance efficiency. The connector design supports structured wiring layouts while reducing installation complexity.
Technical Overview
Featuring a 15-position configuration and 1.25mm pitch spacing, this connector can be integrated into various wire harness systems. Additional product information includes: 1.25mm 线对板连接器(GHD)针座,双排,立贴,LCP料,2x15P.
Application Examples
- Electronic control units
- Automation systems
- Power management equipment
- Smart devices
- Industrial electronics
Hot Tags: x1254wvs-2x15a-lpsn 1.25mm wire to board connector 15pin, China x1254wvs-2x15a-lpsn 1.25mm wire to board connector 15pin suppliers, manufacturers
