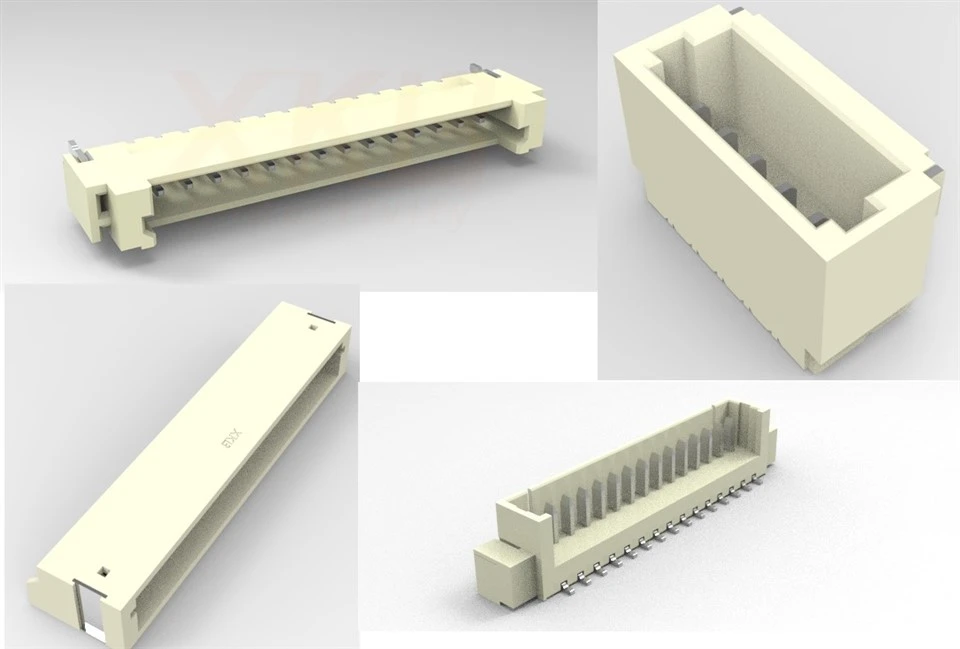

X1254WVS-03-LPSW 1.25mm Wire To Board Connector 03Pin
- Part number
- X1254WVS-03-LPSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1254WVS-03-LPSW is a 03-pin wire to board connector featuring 1.25 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Power Distribution Connection Solution
The X1254WVS-03-LPSW Wire to Board Connector is designed to support reliable power distribution between wire harness assemblies and PCB circuits. Featuring a 1.25mm pitch configuration and 03 contact positions, this connector provides stable electrical interconnection for modern electronic systems.
Power Transfer Reliability
Consistent power delivery is essential for maintaining equipment performance. The connector structure helps establish dependable electrical contact while supporting efficient current flow between connected components.
Technical Features
With a 1.25mm pitch layout and 03 available contacts, the connector supports organized power routing and simplified PCB integration. Product specification: 1.25mm 线对板连接器(Molex 502380)针座,立贴,03P.
Typical Applications
- Power management systems
- Industrial controllers
- Consumer electronics
- Communication equipment
- Embedded electronic devices
