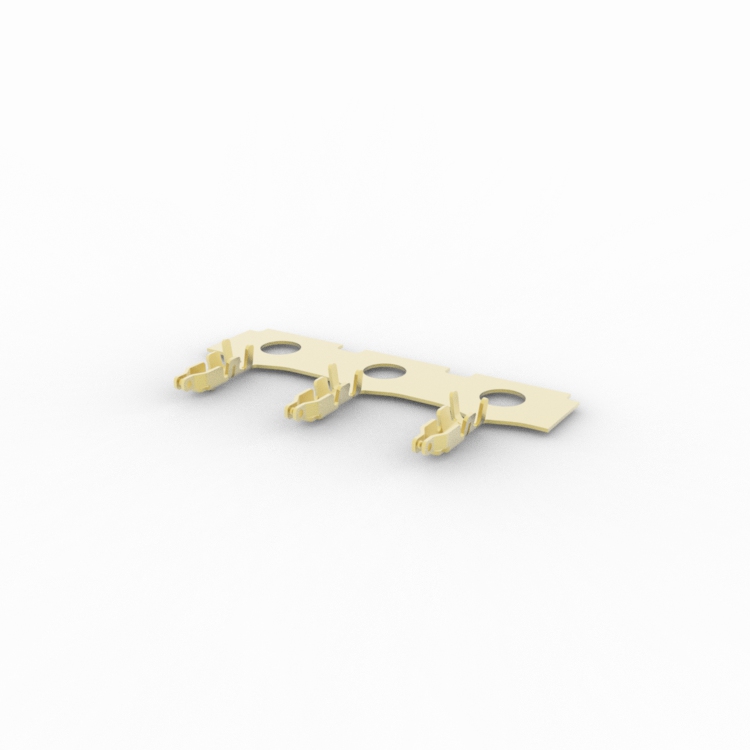

X1224T-PV01 1.20mm Wire To Board Connector
- Part number
- X1224T-PV01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1224T-PV01 is a wire to board connector featuring 1.20 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire-to-Board Reliability Enhancement
The X1224T-PV01 connector is designed to establish reliable electrical connections between cable assemblies and printed circuit boards. Its 1.20mm pitch spacing and circuits support stable system integration.
Operational Reliability
Reliable wire-to-board interfaces contribute to overall equipment performance. The connector design helps maintain secure contact engagement while supporting consistent electrical transmission.
Engineering Benefits
The 1.20mm pitch structure and -position arrangement provide flexibility for PCB designers seeking efficient interconnection solutions. Detailed specification: 1.20mm 线对板连接器(MX 1.2)端子,磷铜先冲后镀金.
Suitable Applications
- Electronic controllers
- Industrial equipment
- Communication products
- Embedded platforms
- Consumer electronic devices
