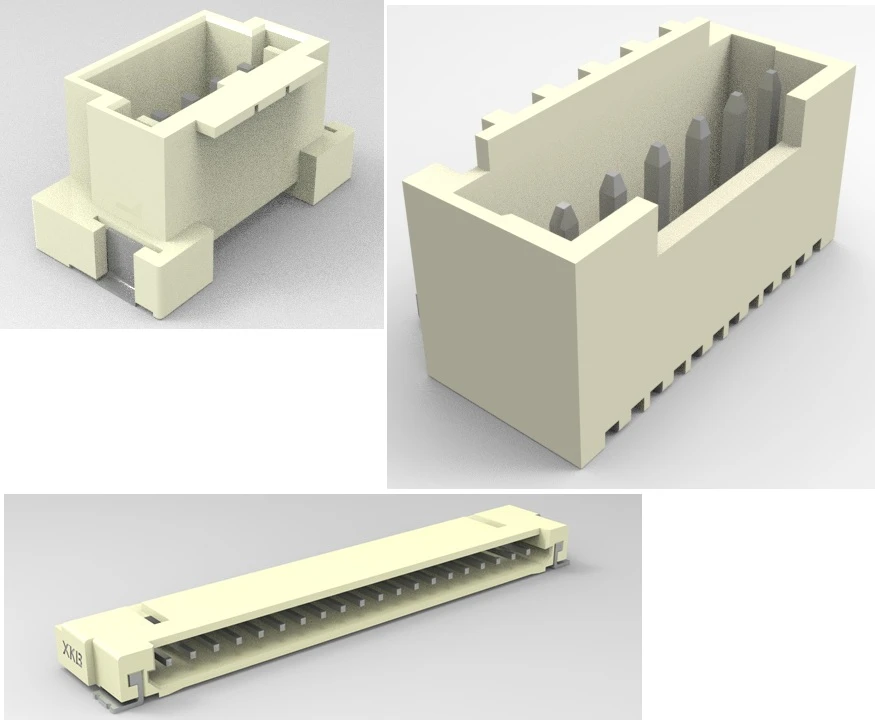

X1004WRS-03AHF-4TSW 1.00mm Wire To Board Connector 03Pin
- Part number
- X1004WRS-03AHF-4TSW
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1004WRS-03AHF-4TSW is a 03-pin wire to board connector featuring 1.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Reliable Wire Harness Integration
The X1004WRS-03AHF-4TSW Wire to Board Connector provides a practical solution for connecting wire harnesses to PCB assemblies. Its 1.00mm pitch format and 03 contact positions support dependable electrical performance across a wide range of applications.
Wiring Reliability
Reliable wire harness connections help maintain stable operation in electronic systems. The connector design contributes to secure mating performance and organized cable routing.
Connector Characteristics
The connector utilizes a 1.00mm pitch layout and 03-position structure. Specification details include: 1.00mm 线对板连接器针座,卧贴带扣,A,03P.
Common Usage Areas
- Control boards
- Industrial automation
- Consumer products
- Monitoring equipment
- Communication devices
