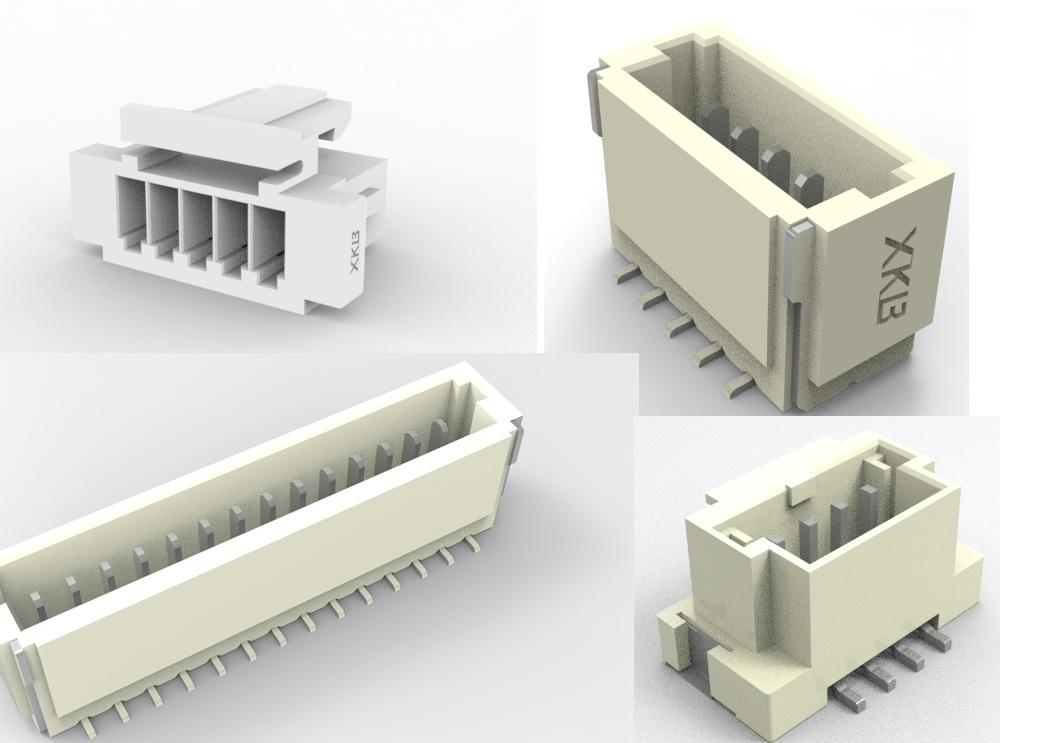

X1004T-PV01 1.00mm Wire To Board Connector
- Part number
- X1004T-PV01
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1004T-PV01 is a wire to board connector featuring 1.00 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Board-Level Wiring Optimization
The X1004T-PV01 Wire to Board Connector is developed for PCB-based electrical systems that require stable wire harness integration. The 1.00mm pitch structure and contacts support efficient circuit organization.
PCB Connection Advantages
Reliable board connectivity contributes to overall system performance. The connector design helps reduce wiring complexity while improving installation efficiency and maintenance convenience.
Product Overview
Featuring a 1.00mm pitch arrangement and contact positions, this connector can be incorporated into numerous PCB layouts. Detailed specification: 1.00mm 线对板连接器(MX 501334)端子,配单排胶壳,磷铜先冲后镀金.
Recommended Applications
- Automation equipment
- Industrial controllers
- Consumer electronics
- Power modules
- Embedded systems
Hot Tags: x1004t-pv01 1.00mm wire to board connector, China x1004t-pv01 1.00mm wire to board connector suppliers, manufacturers
