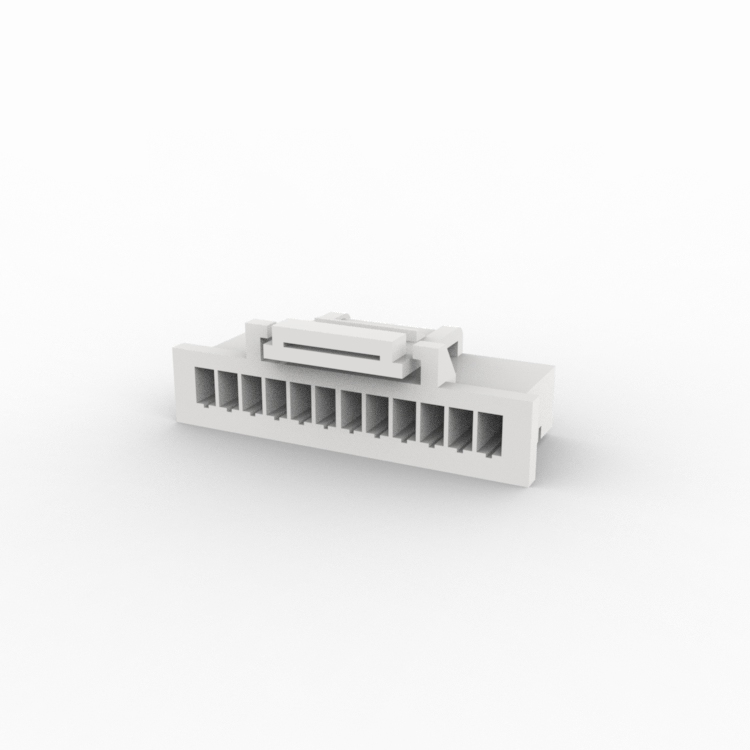

X1004H-12A-N0HF 1.00mm Wire To Board Connector 12Pin
- Part number
- X1004H-12A-N0HF
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1004H-12A-N0HF is a 12-pin wire to board connector featuring 1.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Dependable Board Connection Interface
The X1004H-12A-N0HF connector is developed for wire-to-board applications requiring dependable electrical and mechanical performance. The 1.00mm pitch format combined with 12 circuits supports reliable signal and power transmission.
Reliable Contact Structure
Connector reliability directly affects overall system stability. The optimized contact arrangement helps maintain secure mating performance while supporting consistent operation over repeated connection cycles.
Product Characteristics
The connector incorporates a 1.00mm pitch design and 12-position configuration. Additional specification details include 1.00mm 线对板连接器(MX 501330)HSG,单排有扣,12P.
Application Fields
- Industrial electronics
- Measurement equipment
- Control systems
- Consumer products
- Communication hardware
