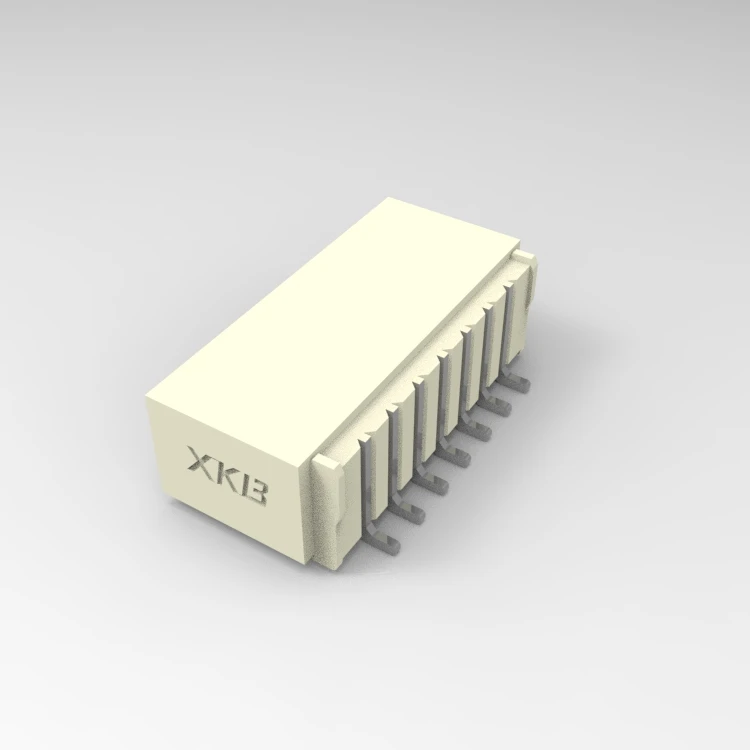

X1002WRS-07E-LPSWHF 1.00mm Wire To Board Connector 07Pin
- Part number
- X1002WRS-07E-LPSWHF
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1002WRS-07E-LPSWHF is a 07-pin wire to board connector featuring 1.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Practical Connector Selection Solution
The X1002WRS-07E-LPSWHF Wire to Board Connector is suitable for applications requiring dependable PCB-to-wire connectivity. Featuring a 1.00mm pitch layout and 07 contact positions, it helps support efficient electronic system design.
Application-Oriented Design
Connector selection influences wiring organization, assembly efficiency, and long-term maintenance. The connector design supports stable electrical performance while accommodating diverse installation requirements.
Engineering Benefits
The 1.00mm pitch spacing and 07-position structure provide flexibility for a wide range of electronic products. Product specification includes: 1.00mm 线对板连接器(SH)针座,卧贴,LCP料雾锡,07P.
Application Examples
- Industrial control systems
- Electronic instruments
- Communication devices
- Consumer electronics
- Embedded electronics
