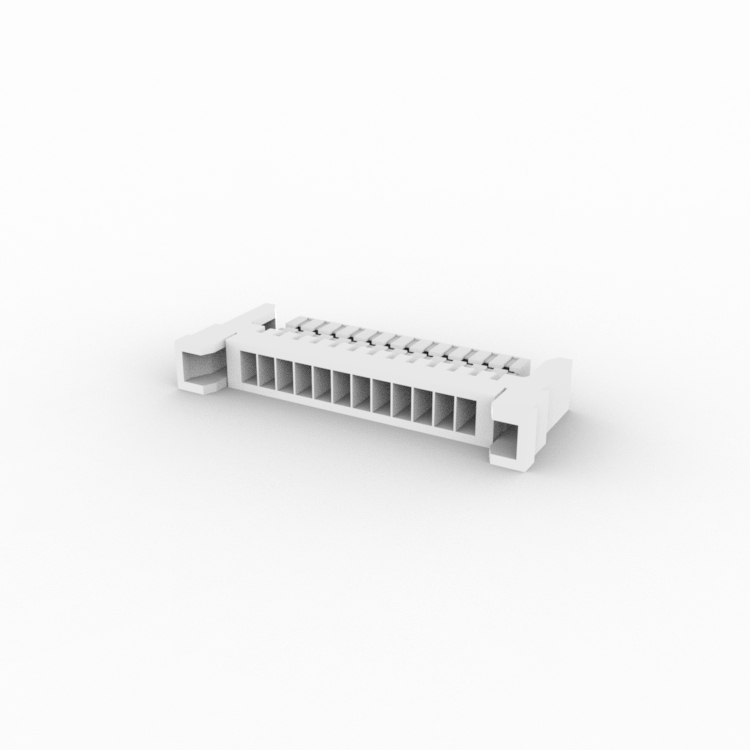

X1002H-12C-N0 1.00mm Wire To Board Connector 12Pin
- Part number
- X1002H-12C-N0
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1002H-12C-N0 is a 12-pin wire to board connector featuring 1.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Signal Transmission Connector Solution
The X1002H-12C-N0 Wire to Board Connector is designed to support dependable signal transmission between wire harness assemblies and PCB circuits. Featuring a 1.00mm pitch configuration and 12 contact positions, it provides an effective interconnection solution for modern electronic systems.
Signal Integrity Performance
Maintaining stable signal transmission is essential for electronic reliability. The connector structure helps establish consistent electrical contact while supporting efficient signal routing throughout the system.
Technical Characteristics
The 1.00mm pitch layout and 12-position configuration make this connector suitable for signal-related applications requiring organized board-level connectivity. Product specification: 1.00mm 线对板连接器(NH)HSG,两边带扣,12P.
Application Areas
- Communication devices
- Control systems
- Embedded electronics
- Industrial automation
- Electronic instruments
