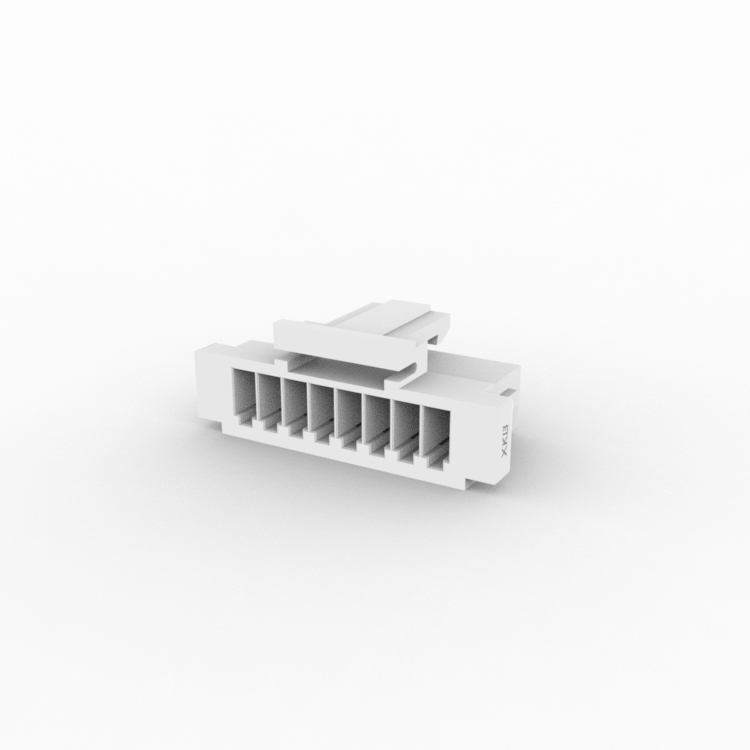

X1002H-08L-N0HF 1.00mm Wire To Board Connector 08Pin
- Part number
- X1002H-08L-N0HF
- Category
- XKBproduct
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Product information
Overview
The X1002H-08L-N0HF is a 08-pin wire to board connector featuring 1.00 pitch. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
Details
Wire Harness Connection Solution
The X1002H-08L-N0HF Wire to Board Connector is designed to provide a dependable interface between wire harness assemblies and printed circuit boards. Featuring a 1.00mm pitch configuration and 08 contact positions, it supports organized wiring structures across various electronic systems.
Harness Design Benefits
Wire harness organization plays a critical role in equipment reliability. The connector helps simplify cable routing while supporting efficient connection management in both compact and large-scale assemblies.
Product Features
The 1.00mm pitch structure and 08-position arrangement support flexible harness configurations while maintaining reliable board connectivity. Product specification: 1.00mm 线对板连接器(SH)HSG,带扣,08P.
Typical Applications
- Wire harness assemblies
- Industrial controllers
- Consumer electronics
- Communication equipment
- Embedded systems
