X05BDIWA1DY1022 16.20mm RJ45 Connector
- Part number
- X05BDIWA1DY1022
- Category
- RJ45连接器
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The X05BDIWA1DY1022 is a rj45 connector featuring 16.20 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
X05BDIWA1DY1022 RJ45 Connector for Security Networking Systems
X05BDIWA1DY1022 is suitable for security and surveillance networking products requiring reliable Ethernet connections.
Product Features
- Unshielded structure
- Without LED LED configuration
- Mounting Height: 16.20mm
- Body Length: 27.90mm
- Gold Plating Thickness: 1U
Applications
Widely used in IP cameras, NVR systems, monitoring equipment, and security communication devices.
Configuration Details
RJ45 Connector , Single Layer Unshielded ( All Plastic ), Without LED , Vertical Vertical 直 Pin Type , Mounting Height 16.20mm,L=27.90mm Gold Plated 1U”

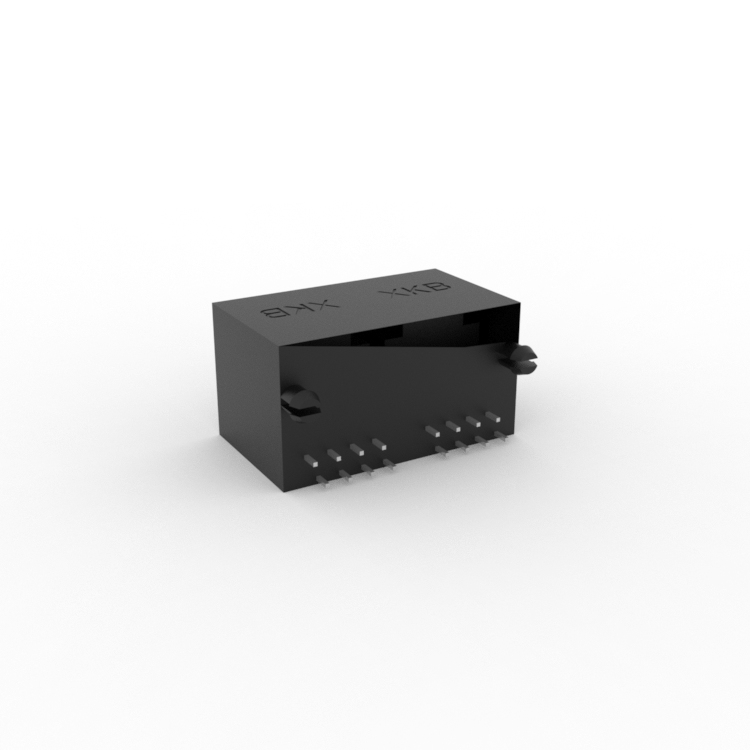

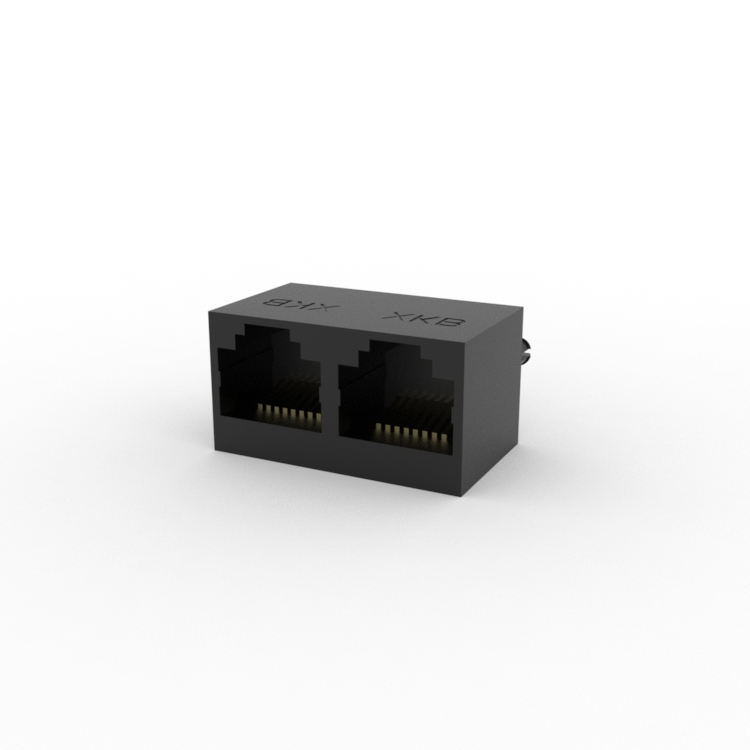

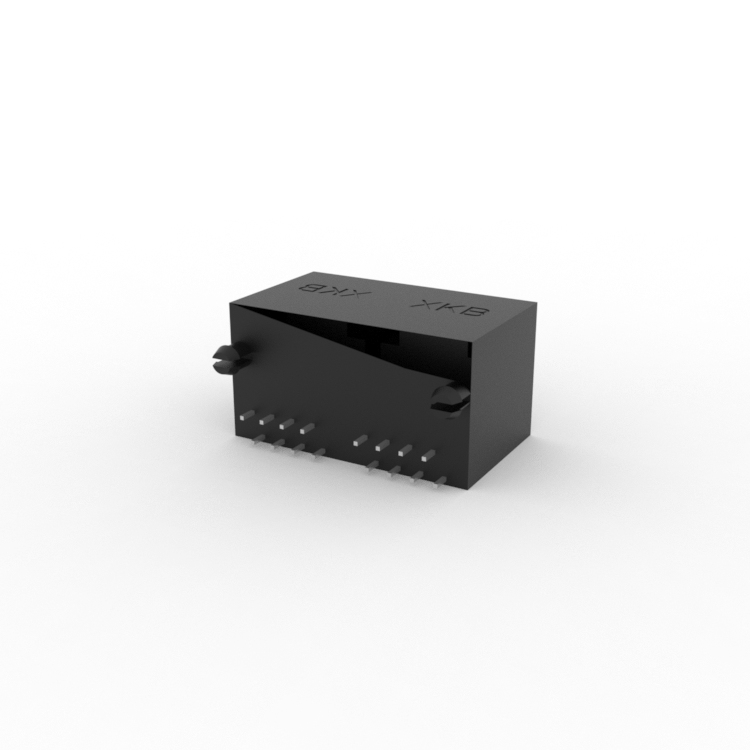

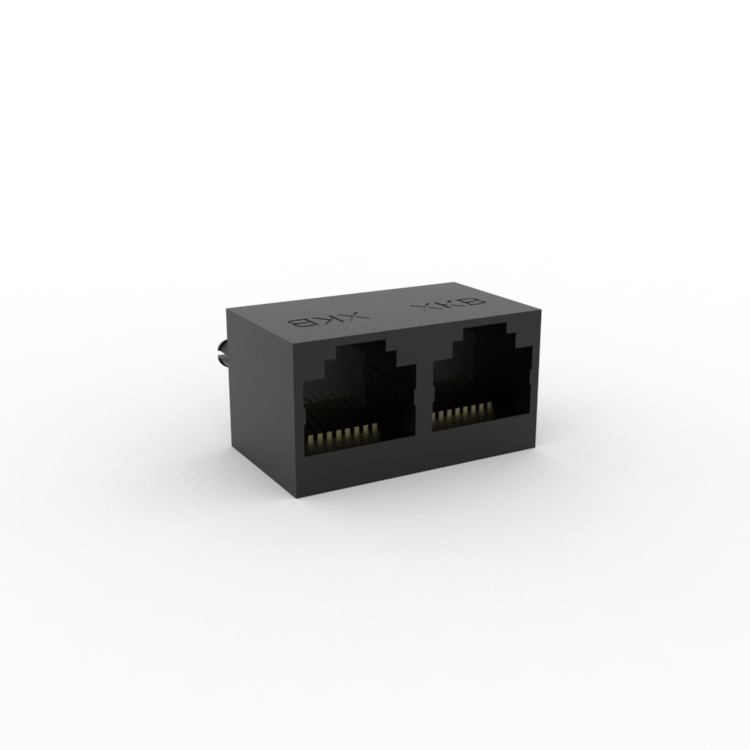

Product images
