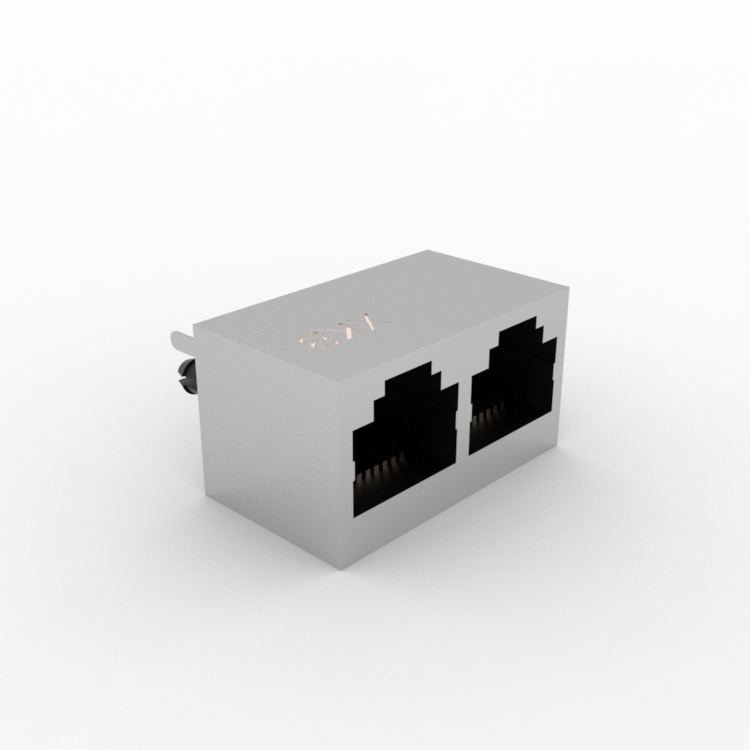

X05BDGWA1D4Y3022 16.50mm RJ45 Connector
- Part number
- X05BDGWA1D4Y3022
- Category
- RJ45连接器
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The X05BDGWA1D4Y3022 is a rj45 connector featuring 16.50 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
X05BDGWA1D4Y3022 RJ45 Connector for Networking Devices
The X05BDGWA1D4Y3022 connector is developed for Ethernet communication equipment requiring secure and efficient network connections.
Product Parameters
- Shield Type: Unshielded
- LED Configuration: Without LED
- Connector Height: 16.50mm
- Connector Length: 28.50mm
- Gold Plating Specification: 3U
Recommended Applications
Suitable for network switches, routers, embedded communication devices, industrial Ethernet products, and IoT gateways.
Configuration Details
RJ45 Connector , Single Layer Unshielded ( All Plastic ), Without LED , Vertical Vertical 直 Pin Type , Mounting Height 16.50mm,L=28.50mm Gold Plated 3U”

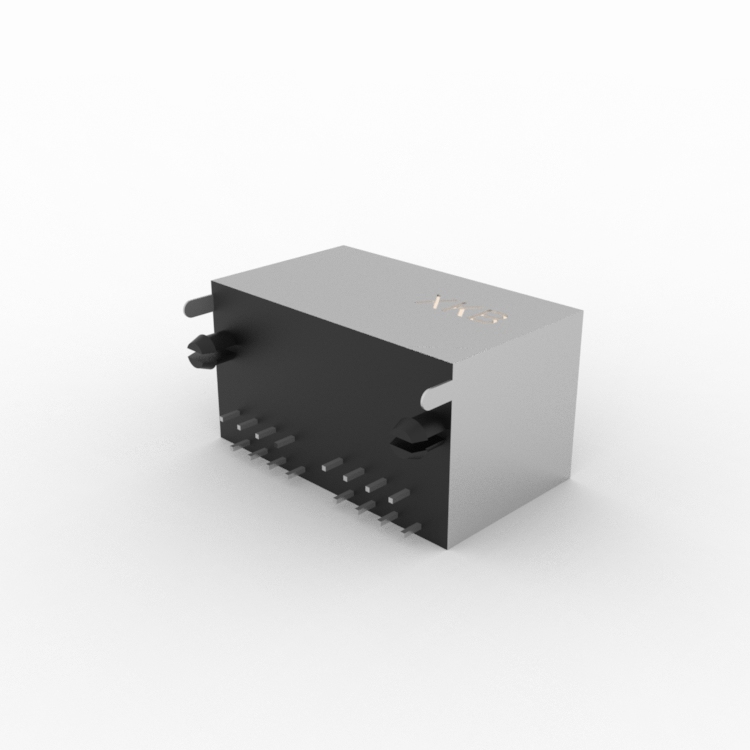

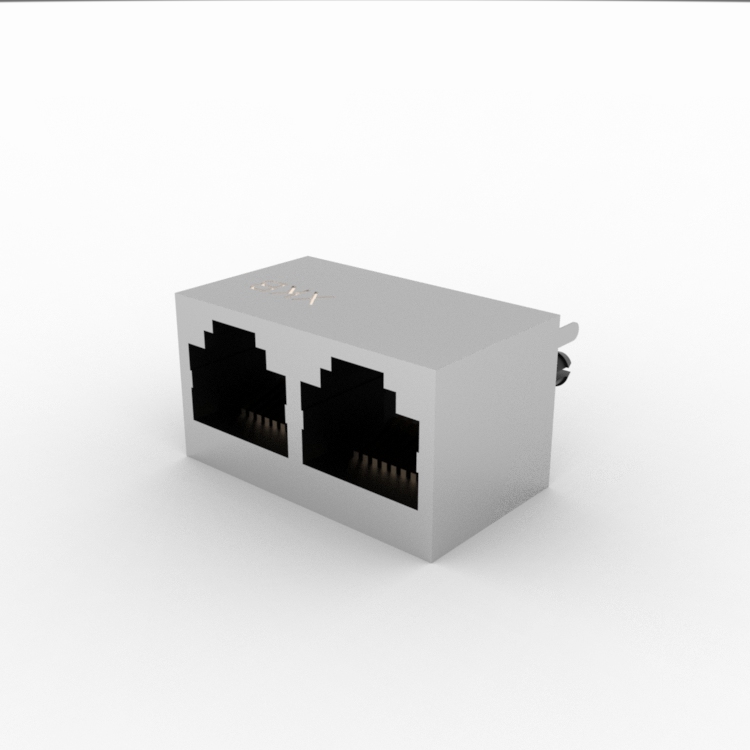

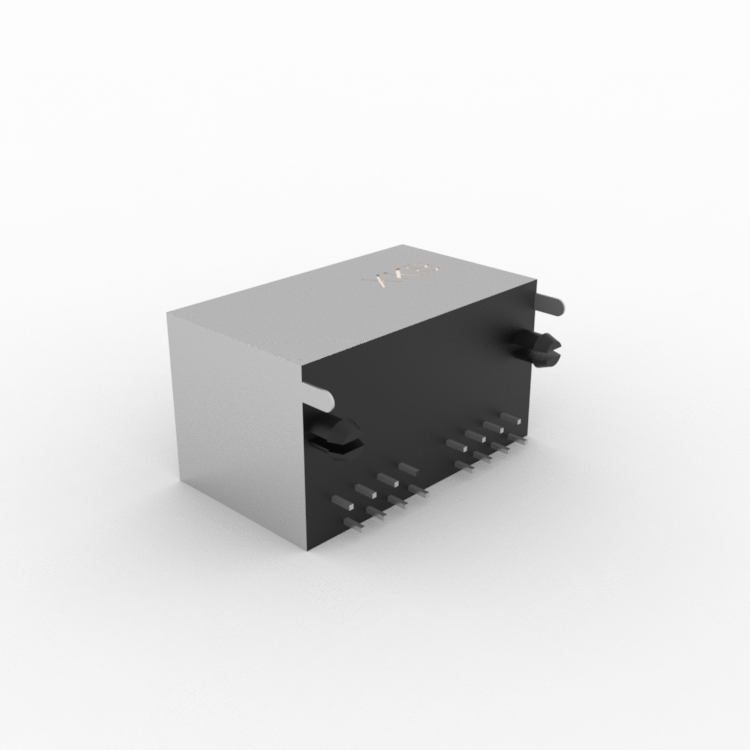

Product images
