X05AQ285AB2OD1A2 16.85mm RJ45 Connector
- Part number
- X05AQ285AB2OD1A2
- Category
- RJ45连接器
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The X05AQ285AB2OD1A2 is a rj45 connector featuring 16.85 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
X05AQ285AB2OD1A2 RJ45 Connector for Embedded Networking Equipment
X05AQ285AB2OD1A2 supports reliable Ethernet connectivity for embedded systems and network-enabled electronic products.
Configuration Details
- Shielding Structure: Shielded
- LED Indicator Arrangement: Without LED
- Connector Height: 16.85mm
- Overall Length: 16.85mm
- Gold Plating Thickness: 1U
Applications
Suitable for embedded computers, development platforms, networking modules, and communication boards.
Configuration Details
RJ45 Connector , Single Layer Shielded , Without LED , Vertical Vertical 直 Pin Type , Mounting Height 16.85mm,L=16.85mm Gold Plated 1U”

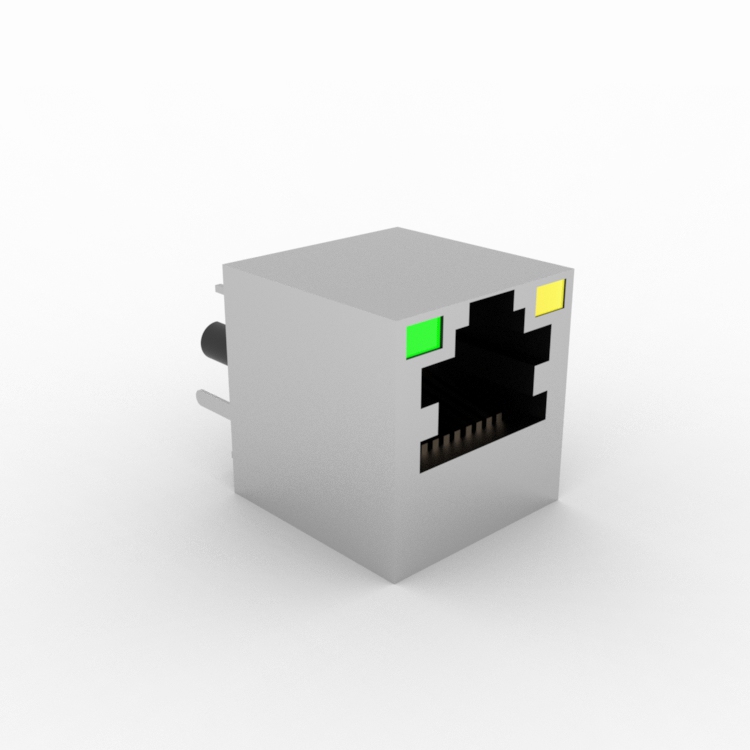

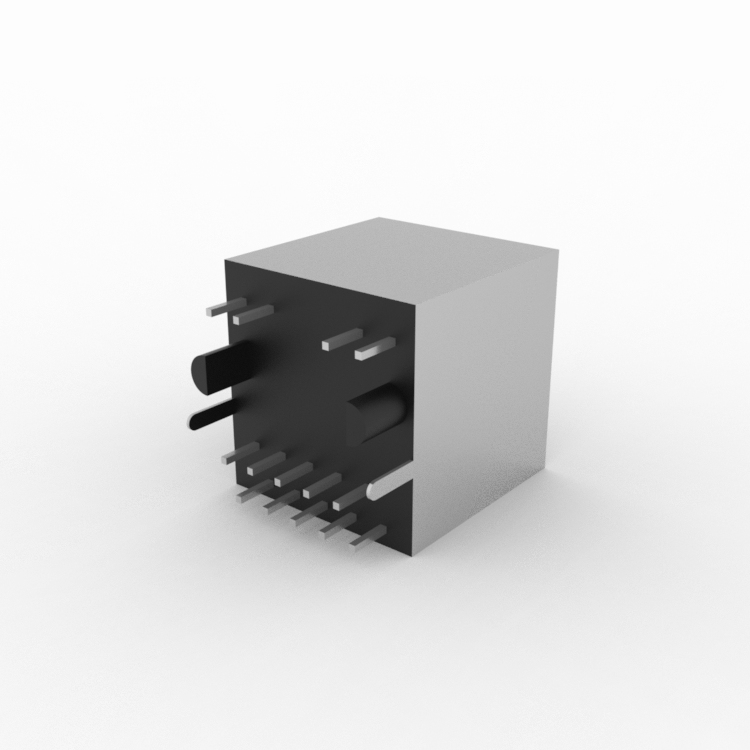

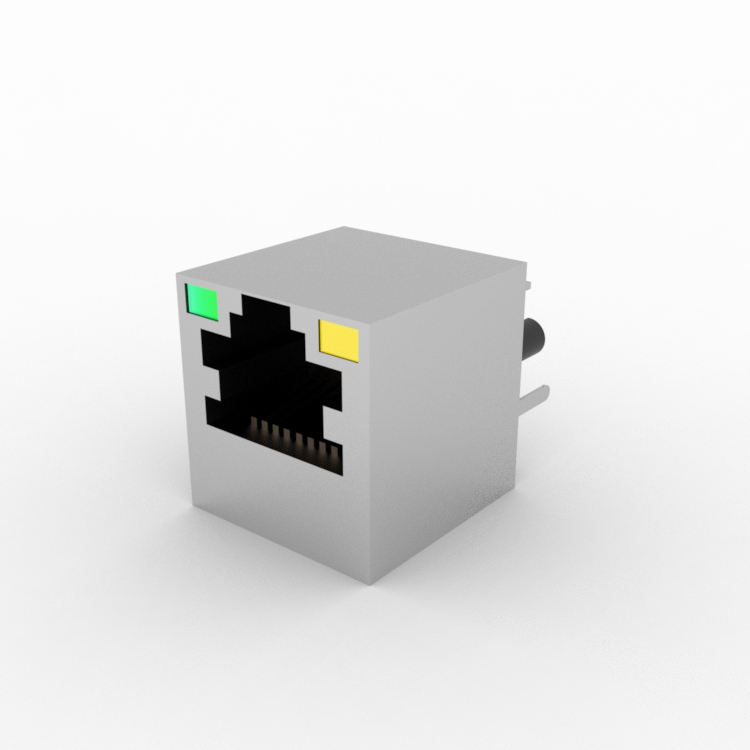

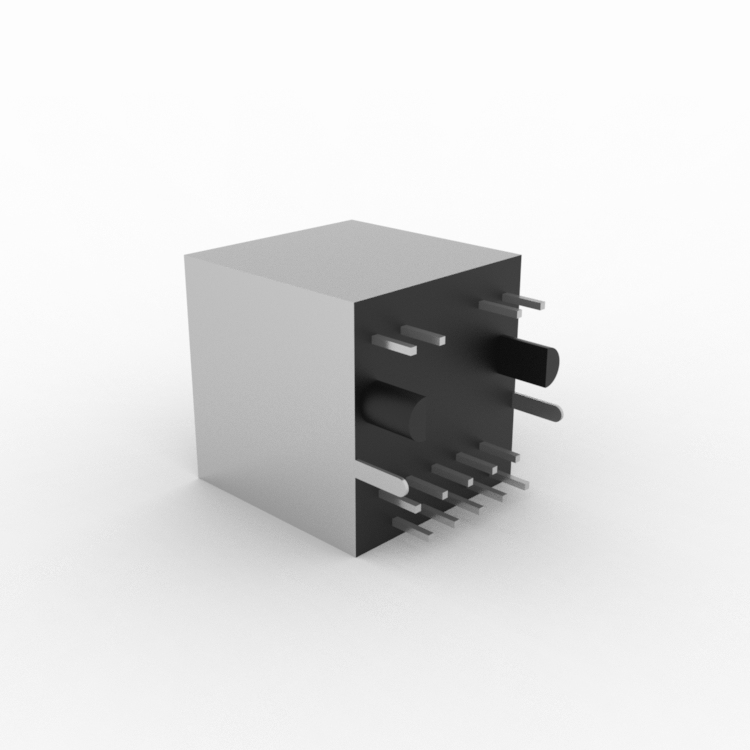

Product images
Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Prepare your inquiry
Include the full part number, quantity, required date and any packaging or documentation requirements. For several line items, attach your BOM.
