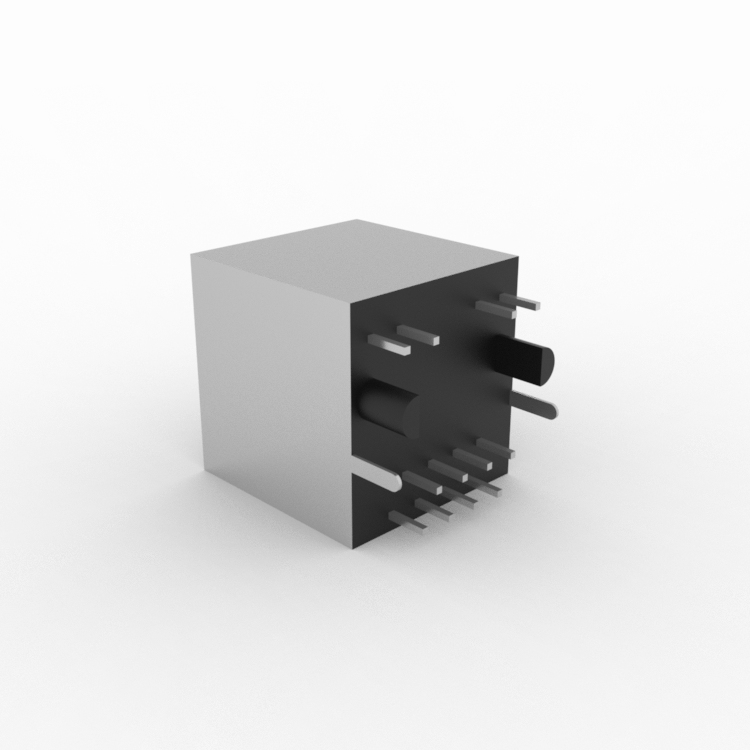

X05AB002AA2OD1 16.85mm RJ45 Connector
- Part number
- X05AB002AA2OD1
- Category
- RJ45连接器
Share your quantity, required date and documentation requirements. Availability and supply conditions are confirmed during quotation.
Request this part ↗The X05AB002AA2OD1 is a rj45 connector featuring 16.85 pitch, and gold-plated contacts. Designed for reliable electrical connections in consumer electronics, industrial equipment, and communication devices.
X05AB002AA2OD1 Shielded RJ45 Ethernet Connector
X05AB002AA2OD1 is engineered to provide dependable Ethernet connectivity and improved signal integrity in demanding applications.
Technical Details
- Shielding Configuration: Shielded
- LED Status Indicators: Left Green Right Yellow
- Mounting Height: 16.85mm
- Body Length: 16.85mm
- Gold Contact Finish: 1U
Product Benefits
- Excellent electrical performance
- Strong mechanical stability
- Easy PCB installation
- Suitable for continuous operation
Configuration Details
RJ45 Connector , Single Layer Shielded , Left Green Right Yellow , Vertical Vertical 直 Pin Type , Mounting Height 16.85mm,L=16.85mm Gold Plated 1U”
Documents & technical information
A verified datasheet is not currently available on this page. Include the exact part number and document requirements in your inquiry.
Ask about documentation →Prepare your inquiry
Include the full part number, quantity, required date and any packaging or documentation requirements. For several line items, attach your BOM.
